Rolling blog. Trans-Pennine route upgrade visit No 3…

03 Wednesday May 2023

Posted by in Calder Valley, Photography, Rail electrification, Rail Investment, Railways, Rolling blogs, Trans-Pennine electrification, TRU

≈ Leave a comment

Tags

, , , , ,

11:30.

The sun doth shine so I’ve escaped the office and the Calder Valley to have one of my regular looks at progress on the Trans-Pennine route upgrade. Right now I’m on a Northern service heading into Manchester from Sowerby Bridge in order to access the route from the West and begin my examinations there before heading through the Colne valley back into West Yorkshire.

I’m not the only one making the most of the weather. This off peak 2-car Class 158 is busy with day-trippers doing the same.

I’ll be updating this blog throughout the day so feel free to keep popping back to see what I get up to…

158860 arrives at Sowerby Bridge en-route to Wigan Wallgate.

12:20.

Due to disruption and late running with services via Victoria I’m taking the ‘scenic route’ via Salford Crescent where I picked up a very busy Northern Class 331 electric to get me to Manchester Piccadilly where I’ll connect with a Newcastle bound TPE service to Stalybridge. Here it is, worked by 802213.

12:45.

I’m now on the late-running 12:33 which still has plenty of free seats at this point in its journey. It won’t be like this once it gets to Huddersfield.

I don’t envy the passengers joining the nearby Transport for Wales service to Cardiff Central. They’ve got this 75mph ‘delight’ in store today…

13:30.

On the move again! The trip to Stalybridge via Guide Bridge was interesting as it allowed me to glimpse the work done on the curve between the two. The chord’s now full of TTLs (two-track cantilevers) waiting to be fitted out and the wires added. The irony? This section of track was originally electrified as part of the 1500v DC Woodhead line scheme from the 1950s and some of the original lighweight masts survive – although not for much longer.

Things hadn’t changed majorly at Stalybridge despite bank holiday works. No new TTLs or portals had appeared but the structures that did were being fitted out with downpipes and registration arms.

I didn’t hang around. Now I’m on a local TPE service to Huddersfield. Thus section of the route shows no descernable progress other than vegetation clearance and a few concrete hardstandings installed for future worksites or lineside cabinet locations. Don’t even ask about the new line from Liverpool to Marsden which exists only in the imagination..

13:50.

My stop at Huddersfield was brief in the extreme. 5 mins to change trains and grab a quick picture. Huddersfield stations about to undergo major changes as part of the TRU, so savour views like this whilst you can.

The grade 1 listed Huddersfield station will be seeing a major rebuild with the two small bay platforms behind the camera abolished and two new through platforms provided instead.

14:50.

At my next stop (Dewsbury) train times went pear-shaped again as my connecting service is 20m plus late. Oh, well. Time for a swift half in the station’s West Riding refreshment rooms. Choices, choices…

16:45.

I’m now heading home from Batley after an interesting interlude looking at the TPU work and also reminiscing about the town which is hardly a place I can say I know well but it seems to keep cropping up in my memories and mentions.

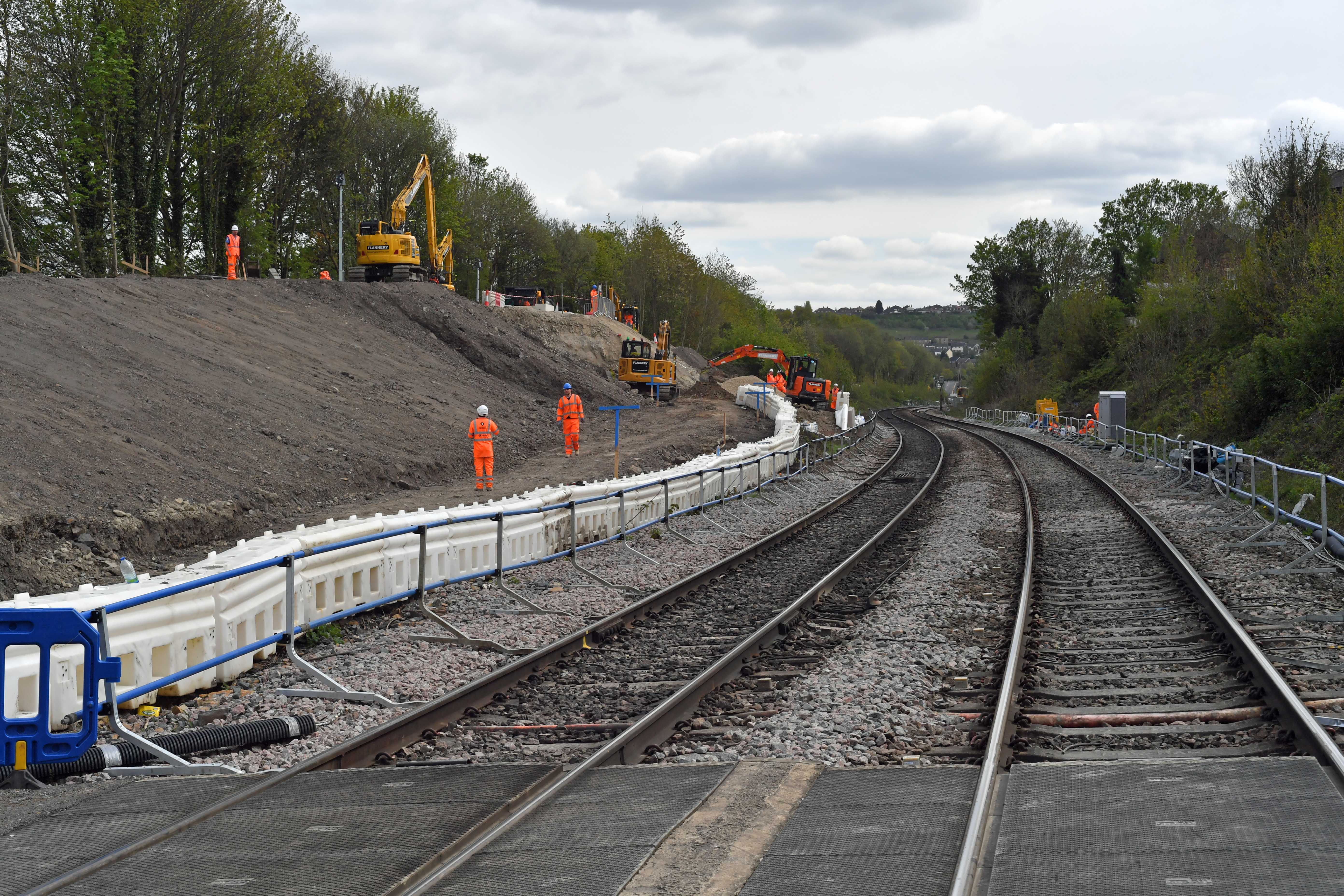

The work to install the footbridge and abolish the foot crossing is well advanced. Most of the earthworks are complete and sections of the footbridge have arrived on site. On a Facebook forum one of the signallers working the box has said it will close on June 23rd. Here’s a look at work today.

The location of the footbridge is made clear by the abutment wall next to the rails.
The wider view from Lady Anne crossing looking towards Batley. The two people in PPE in the left foreground are standing on what will be a tarmac’d ramp from the footbridge down to the site of the level crossing out of shot to the left.
Sections of the footbridge have already arrived on site. They can be seen in this picture sat on the back of a pair of HGV trailers.

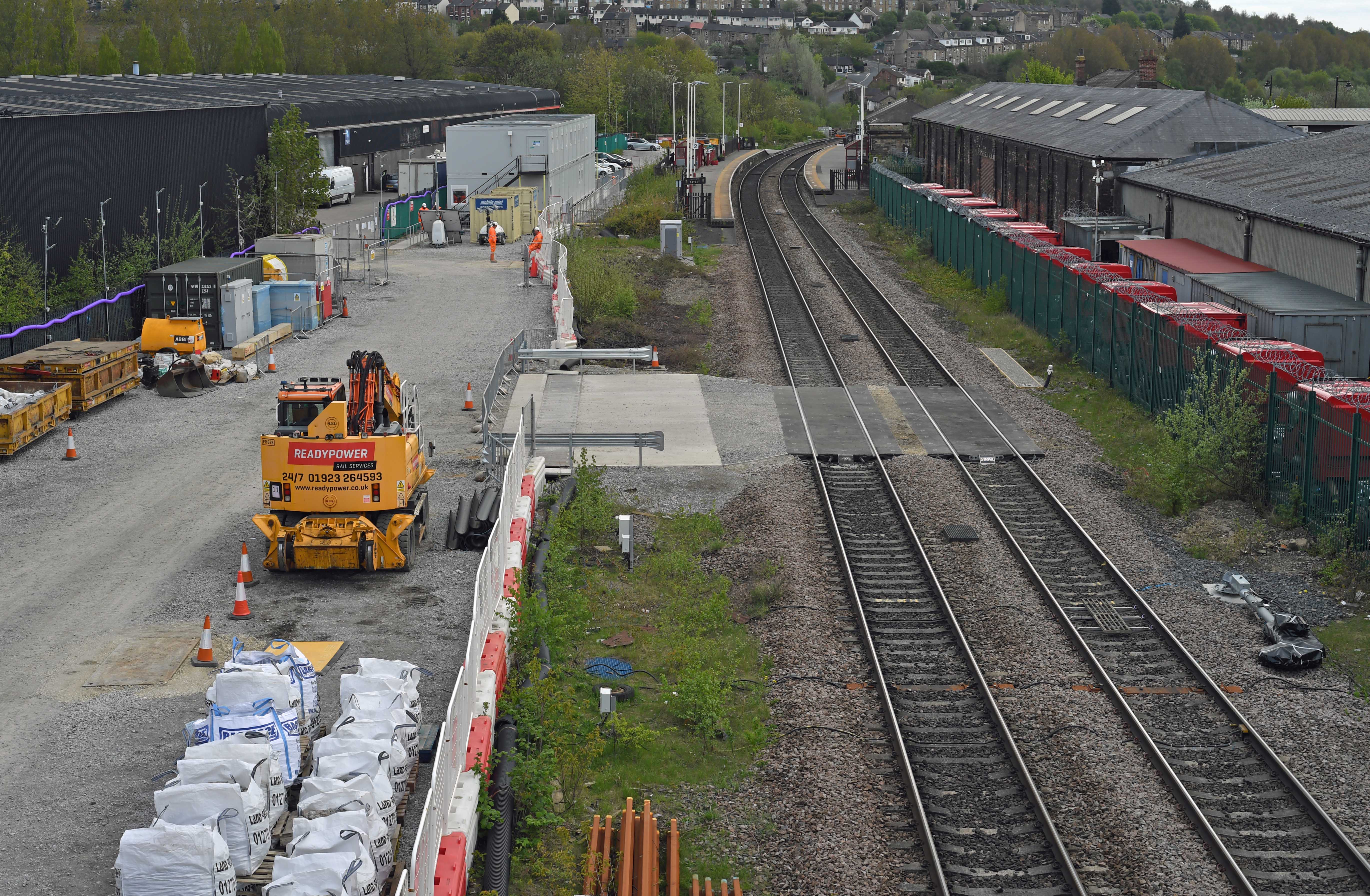

A TPU compound has been established adjacent to Batley station on the site of the old GNR platforms and yard. It extends beyond the industrial unit to the left. You can see one of the new tilting, ladderless signals that are being installed in the cess to the right of the picture.

21:55.

I’m now back at home and winding up today’s blog after an interesting day out. Walking back into Batley I noticed that that the pub next to the station had reopened. Located in the basement of one of the lovely old Victorian buildings that line the exit to the station, the Cellar Bar closed suddenly in December 2022 after six and a half years but reopened under new management at the end of January this year. It’s well worth a visit as it has a selection of hand-pump real ales as well as the usual lagers, wines and spirits.

Having had a swift half I made my direct train back to Sowerby Bridge with minutes to spare. After picking up some shopping en-route I’ve had a leisurely evening being a good husband and cooking for us both whilst Dawn’s been out to visit her hairdresser! Tonight’s meal was made up from these ingredients. To use the catchphrase of a discredited Australian artist – ‘can you tell what it is yet’?

I won’t keep you in suspense. These are the ingredients of a hearty chorizo and Cannelloni bean stew.

I’ve a small favour to ask…
If you enjoy reading this or any of the other blogs I’ve written, please click on an advert or two. You don’t have to buy anything you don’t want to of course – although if you did find something that tickled your fancy that would be fab! – but the revenue from them helps me to cover some of the cost of maintaining this site (which isn’t cheap and comes out of my own pocket). Remember, 99% of the pictures used in my blogs can be purchased as prints from my other website –  https://paulbigland.zenfolio.com/

Or – you can now buy me a coffee! https://ko-fi.com/paulbigland68312

Thank you!

Stalybridge rebuilt…

08 Saturday Apr 2023

Posted by in Photography, Rail electrification, Rail Investment, Railways, Travel

≈ Leave a comment

Tags

, , , ,

On Friday I paid a visit to Stalybridge station to see the result of the engineering blockade that had transformed the stations Western junction. This is been totally remodelled and resignalled. The resignalling has extended to the Eastern side of the station although the track layout here remains unchanged. As well as track and signals a large number of overhead electrification masts and portals have appeared, although there’s still many more to be installed at further weekend engineering possessions before the wires can be extended.

Here’s a selection of pictures showing how the place looks now.

Looking West to Stalybridge Junction from the end of platform 3. This junction was remodelled as recently as 2011. This time some of the switches have been removed and replaced with a flat crossing (just out of sight around the curve). The formations been expanded by the removal of the old ATO oil siding in the far left, which has allowed tracks to be slewed. The remodelling appears to remove conflicts and certainly allows for faster line speeds across the junction.
Bi-mode 769424 pulls into the bay platform 5 with a Southport-Stalybridge service.
185151 approaches platform 3 working 2E73, the 1158 Manchester Piccadilly to Huddersfield.
185151 sits waiting time in platform 3. The newly installed portals are very much in evidence.
802208 approaches from the East whilst working 9M10, the 1006 Newcastle to Liverpool Lime Street. The new portals have usurped the signal gantry that was installed (at great expense) at this location in 2012.
And there it was – gone! The substantial signal gantry that was installed as part of the original Trans-Pennine electrification scheme but (apparently) was now in the way of the revised scheme for some reason. It’s no wonder many rail improvements cost so much money when plans constantly change and investment like this is wasted. It’s seen here in 2016.
New signalling and OLE masts that have been installed at the East end of the station between platforms 3 and 4.
Looking East along platforms 5 and 4 with new masts and portals in place where the former through tracks were situated.
Looking along the railway viaducts by Waterloo Road. The bracket where the 2012 signal gantry was fixed to the side of the piers remains.
185107 calls at platform 4 outside the famous buffet bar whilst working 1K23, the 1354 Liverpool Lime Street to Hull.

I’ve a small favour to ask…
If you enjoy reading this or any of the other blogs I’ve written, please click on an advert or two. You don’t have to buy anything you don’t want to of course – although if you did find something that tickled your fancy that would be fab! – but the revenue from them helps me to cover some of the cost of maintaining this site (which isn’t cheap and comes out of my own pocket). Remember, 99% of the pictures used in my blogs can be purchased as prints from my other website –  https://paulbigland.zenfolio.com/

Or – you can now buy me a coffee! https://ko-fi.com/paulbigland68312

Thank you!

Changing trains. Rebuilding the railway from Johor Baru to Gemas in Malaysia.

17 Tuesday Jan 2023

Posted by in Malaysia, Photography, Rail electrification, Rail Investment, Railways, Travel

≈ 1 Comment

Tags

, , , , ,

Folks familiar with Malaysian railways will know about the great strides the country has taken to modernise the railway from Padang Besar by the Thai border all the way down to the peninsula’s Southern tip at Johor Baru, opposite Singapore. What was a slow, antiquated, colonial-era, single track railway mostly under the control of Victorian semaphore signalling has been upgraded (stage by stage) into a double-track electrified railway with modern bi-directional colour-light signalling capable of speeds of up to 160kph.

The final stage – the 197km section from Gemas (Junction with the East Coast railway to Kuala Lipis) to Johor Baru is well underway, albeit late. The US $2.26bn contact to rebuild the route was won by the China Railway Construction Corporation (CRCC) and work began in January 2018 with an original completion target of 2021, this has now been officially extended until this year, but the delay shouldn’t detract from what’s an impressive piece of civil engineering.

This isn’t just a case of slapping down an extra set of tracks next to the originals. In many cases the new line runs on a brand new alignment that not only takes the kinks out but also flattens gradients and crosses through towns on long viaducts. Then there’s the unseen work, the thousands of concrete piles driven into the ground to stablise the formation, the pinning and shotcreting of cuttings, plus the extensive drainage work. For those of you unfamiliar with the line, here’s a picture I took from the back of a train heading North from Johor Baru near Chemak in February 2017. A 160kph line? I think not…

There’s also 11 brand new and substantial stations. Kempas Baru, Kulai, Leyang – Leyang, Rengam, Menkibol, Kluang, Paloh, Bekok, Labis, Genuang and Segamat, plus 3 entirely new ones at Senai, Chamek and Tenang. Some of these are large four-platform stops with associated freight yards and/or depots.

The completion of this section of line will see the demise of loco-hauled passenger trains on most of the West coast line. Currently, locomotives work the trains between JB and Gemas where passengers transfer to/from electric trains for Kuala Lumpur, Butterworth or Padang Besar. The only one likely to remain is the sleeper train between Tumpat on the East Coast line and Johor Baru.

Here’s a look at progress, seen from a loco hauled train from Johor Baru to Gemas on the 15th January 2023. Johor Baru station was rebuilt back in the early 2010s, the new line work starts a short way North, before the freight lines from docks at Pasir Gudnag and Tanjung Pelapas join the route. I’ve loads of pictures and can’t add them all to this blog, but you can find the rest of them in this gallery on my Zenfolio website.

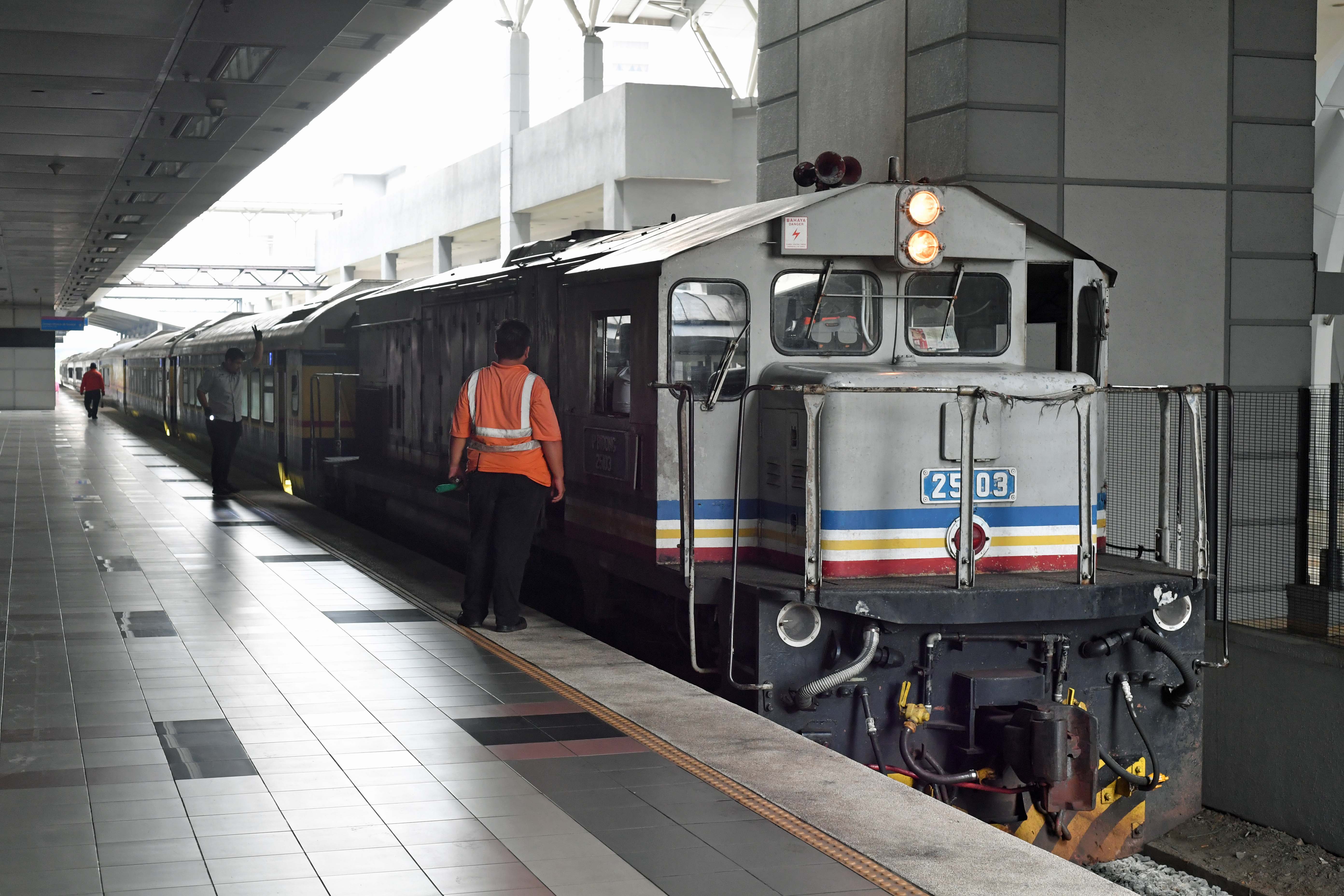

25103 named ‘Pulau Bedong’ prepares to leave Johor Baru with the 8-car (7 passenger coaches and a generator car), 08:30 to Gemas. 25103 is a 1500hp loco built by General Motors, Ontario, Canada. 12 were supplied in 1990 followed by another 5 (25201-205) in 2002.

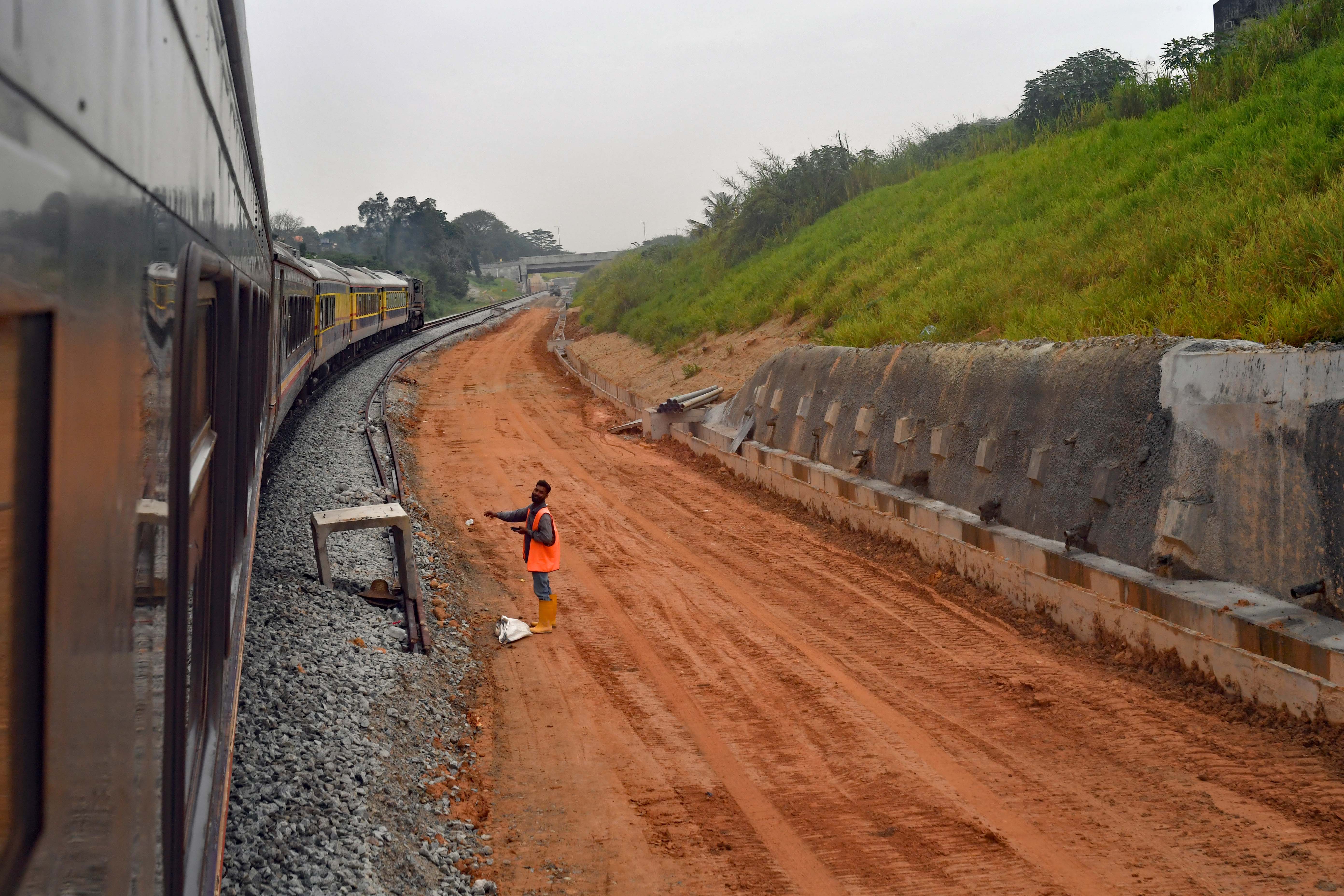

Our train leaves the outskirts of Johor Baru. The scale of the work involved can be seen, from embankment stabilisation to rebuilt bridges.

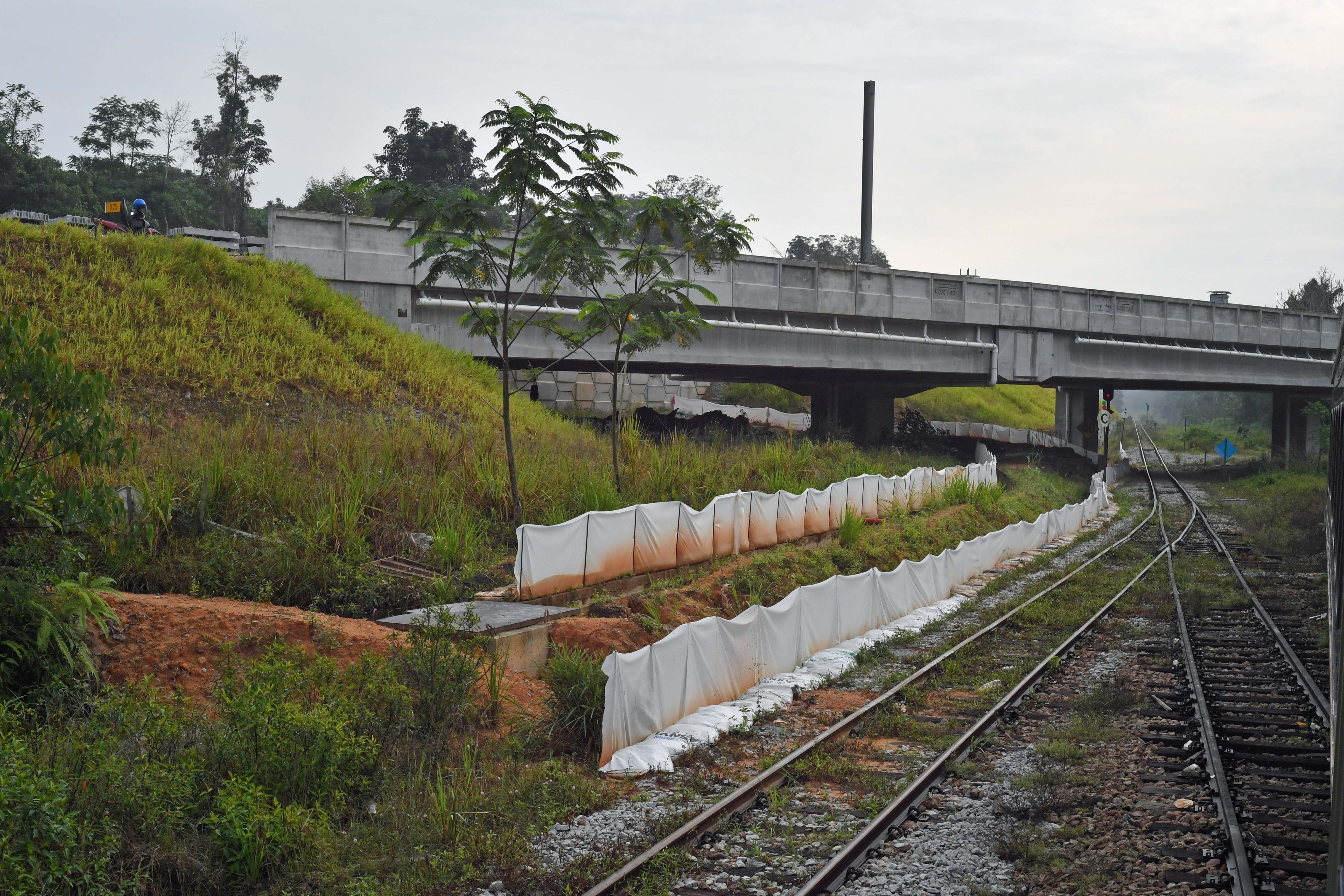

The new (straighter and flatter) route passes over the old at the junction with the freight line out to the East of Johor Baru which serves a container terminal and a shipyard.

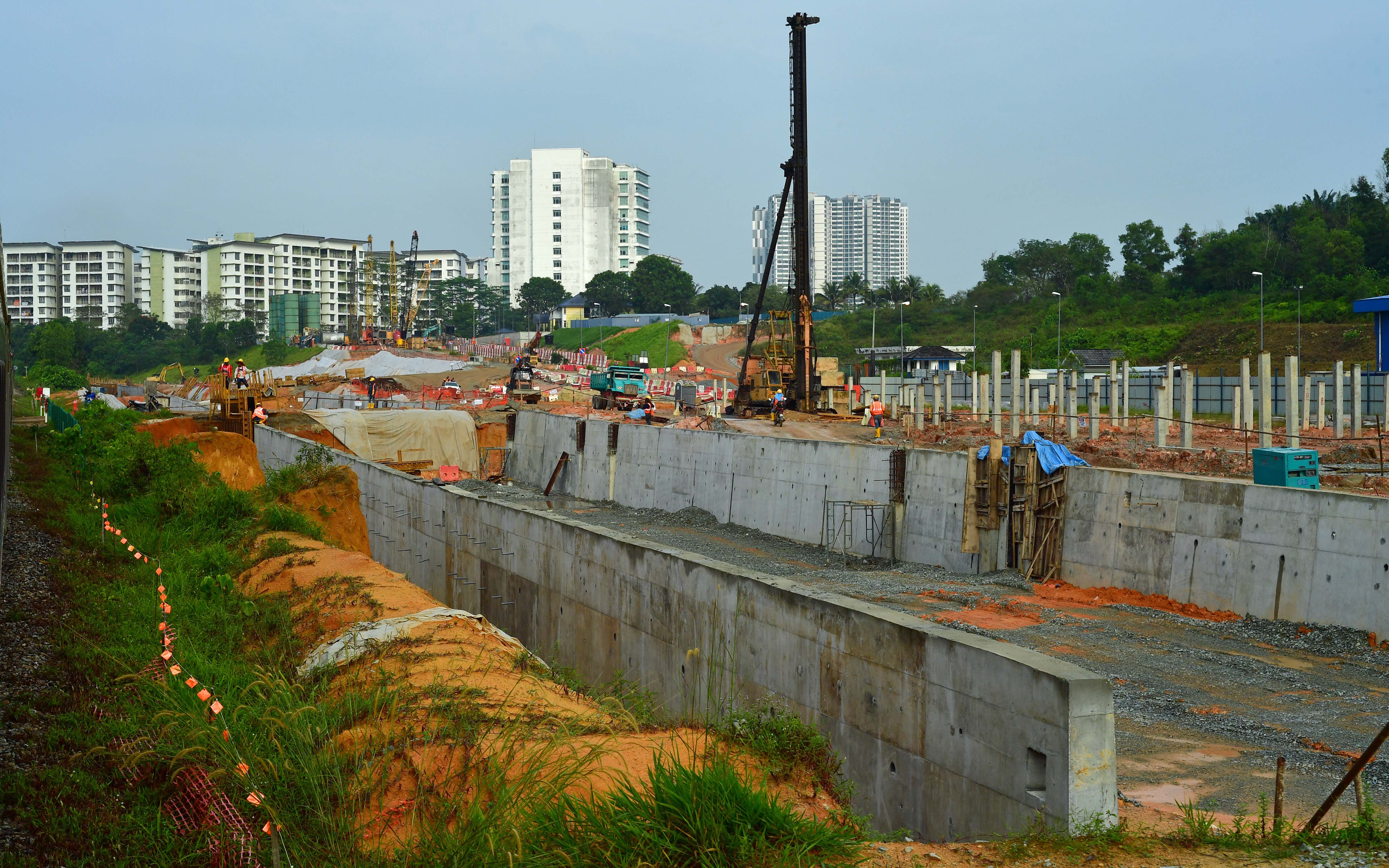

Major civils work just North of Kempas Barou station. A new concrete box (presumably for the new line) is being built whilst a lot of piling work is going on between it and the new loco depot which is just out of shot to the right.

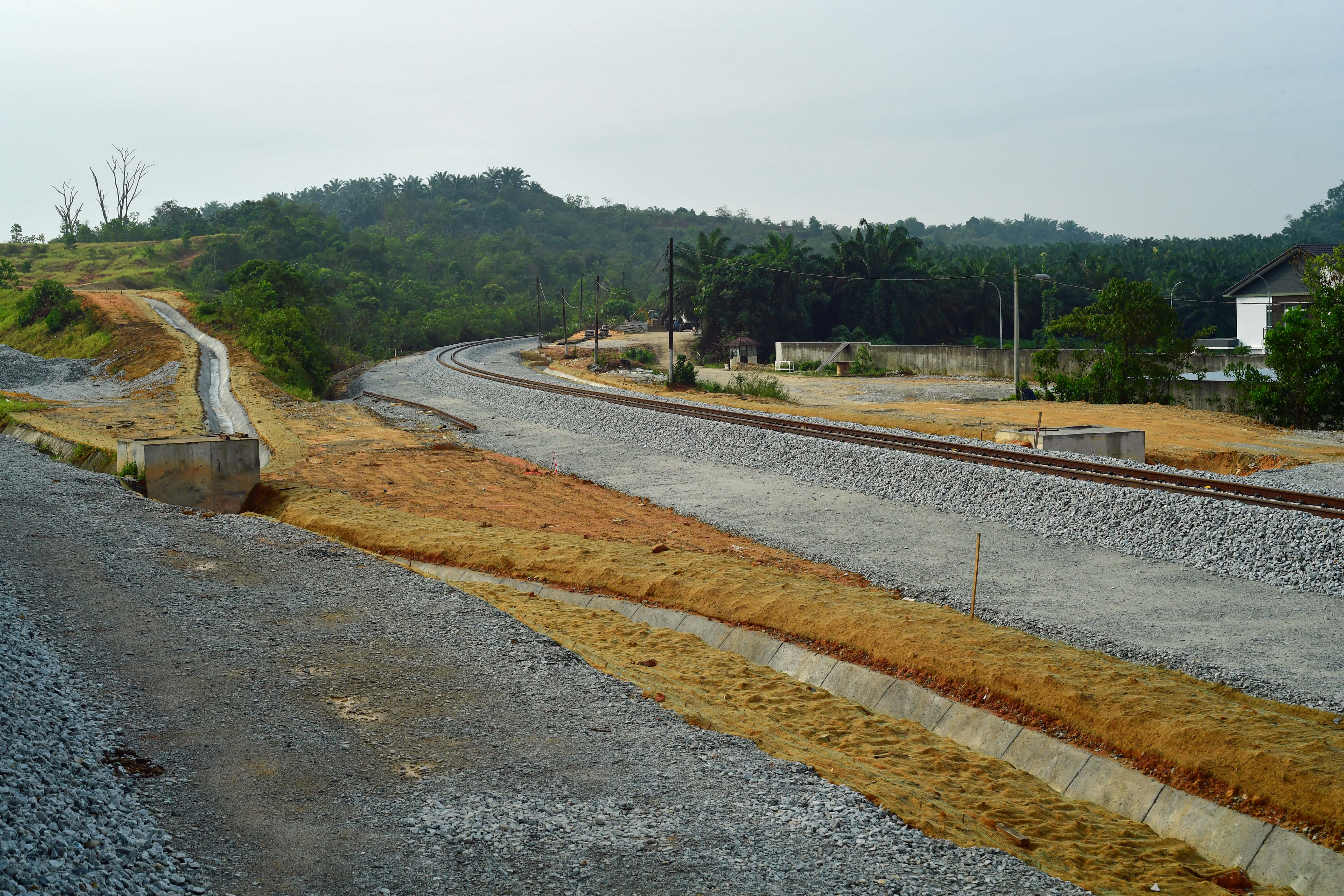

The rebuilt connection with the line to the container terminal at the port of Tanjung Pelapas trails in from the left.

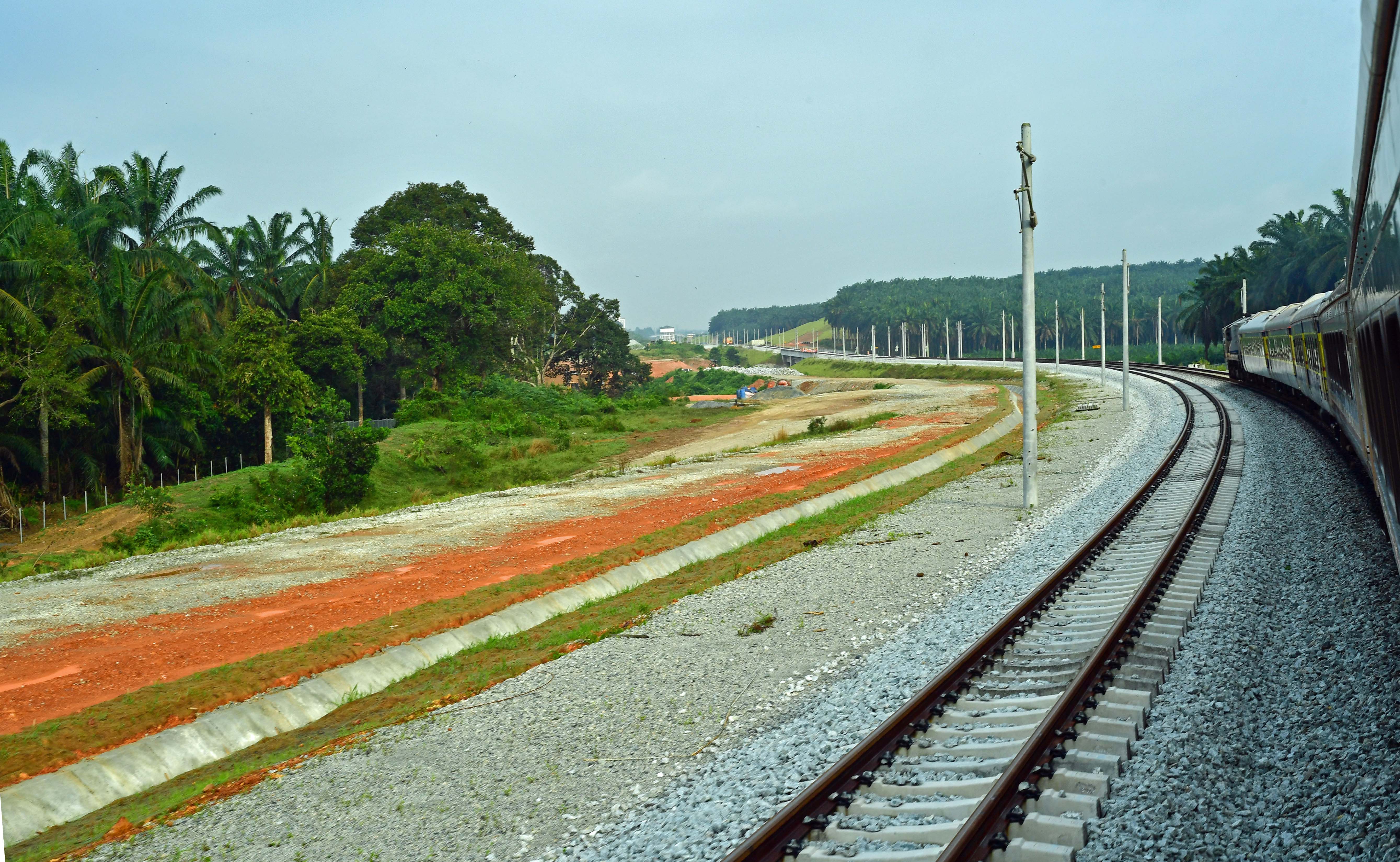

Double tracking and installation of concrete OLE masts South of Kulai.
The refurbished interior of the Hyundai coaches which made up part of our train.

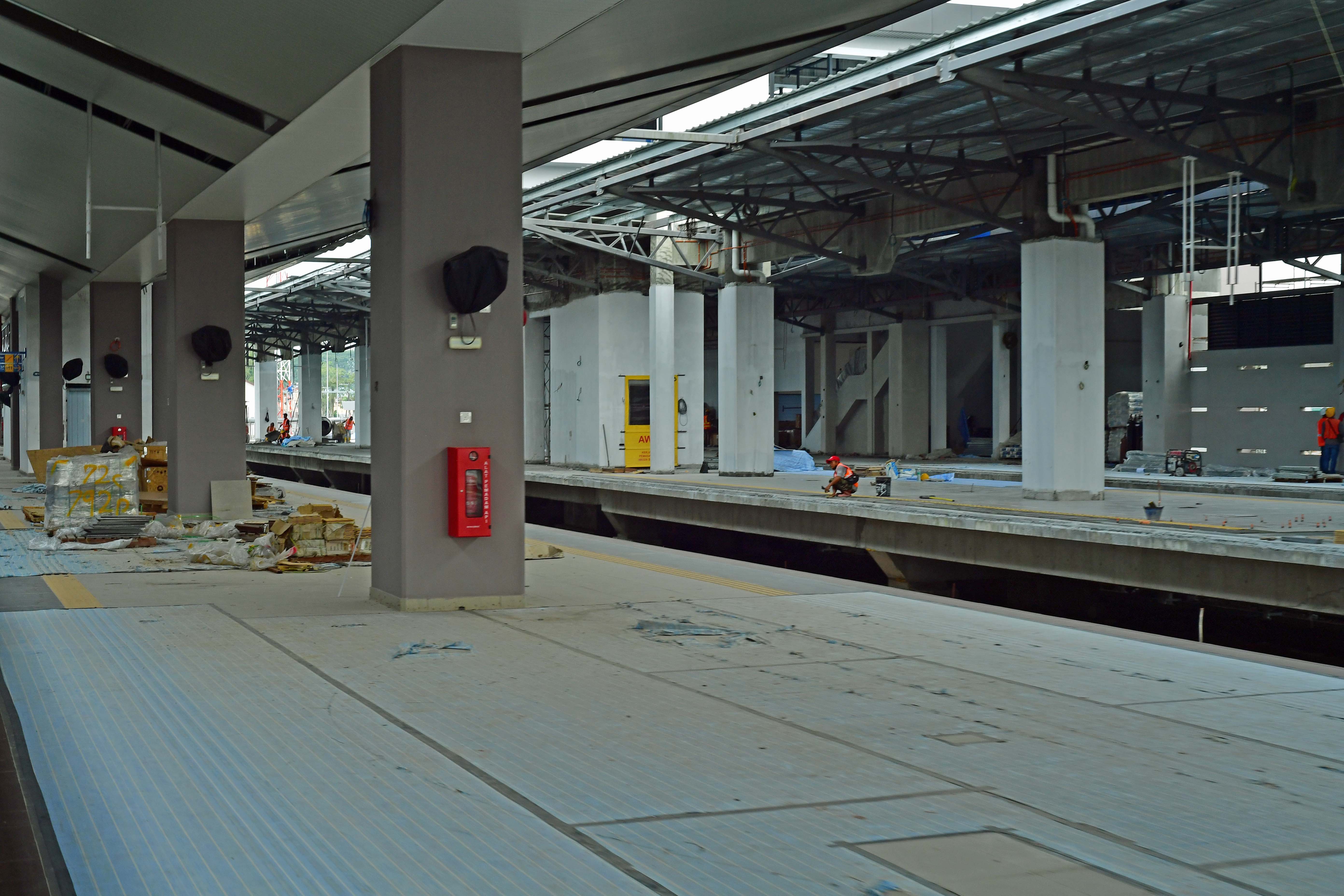

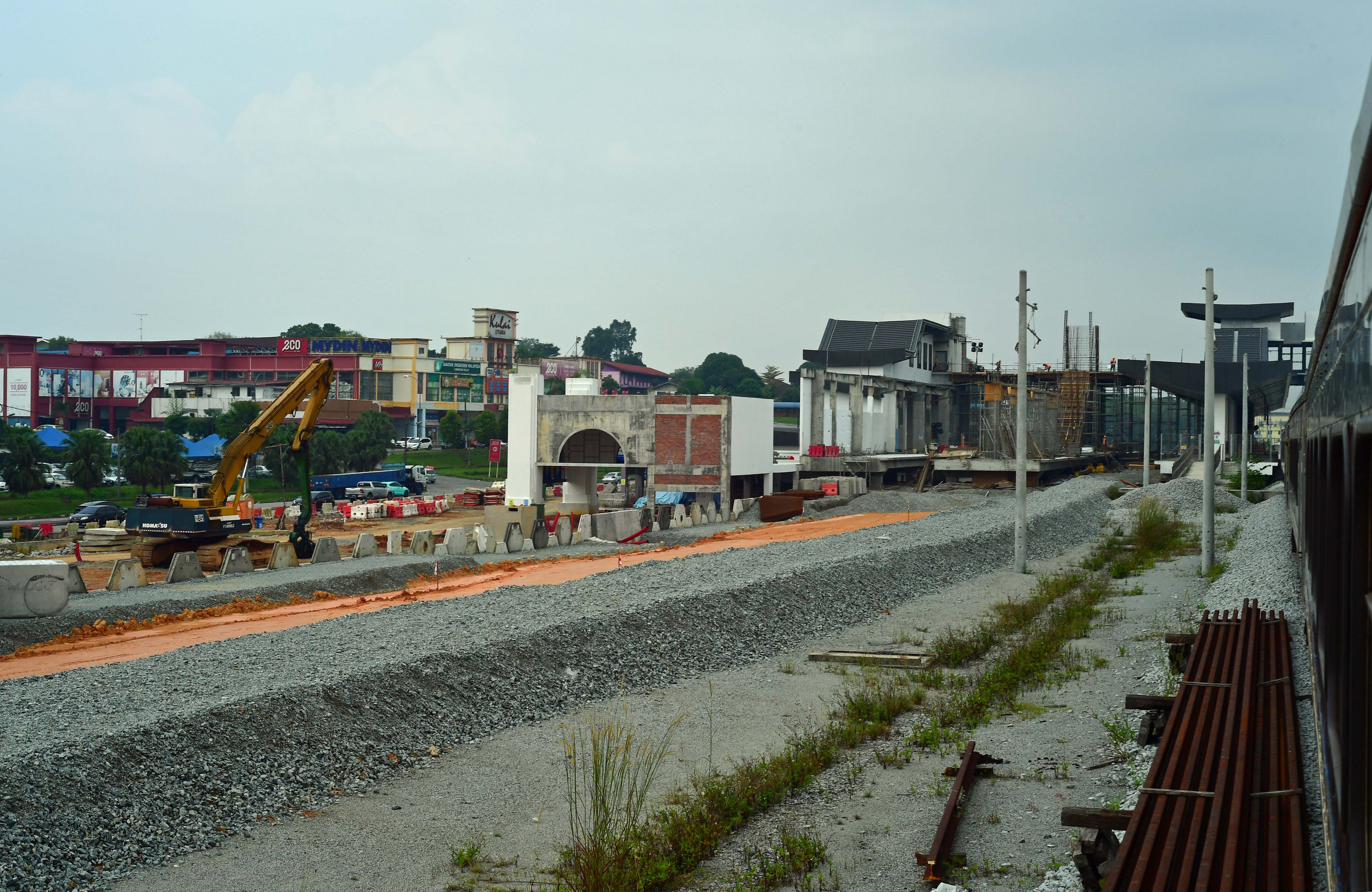

The substantial new station at Kulai takes shape. This will have four platforms.

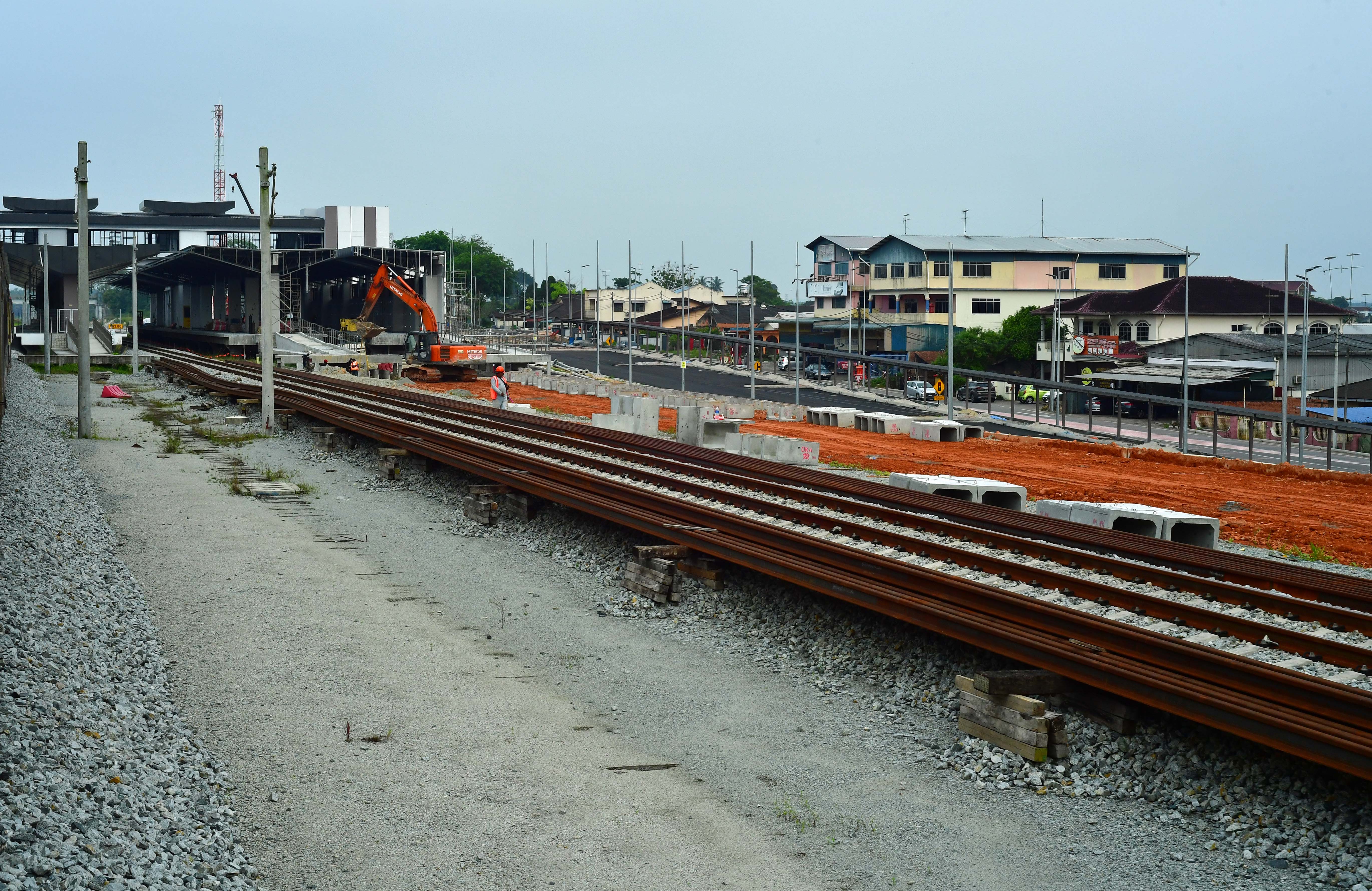

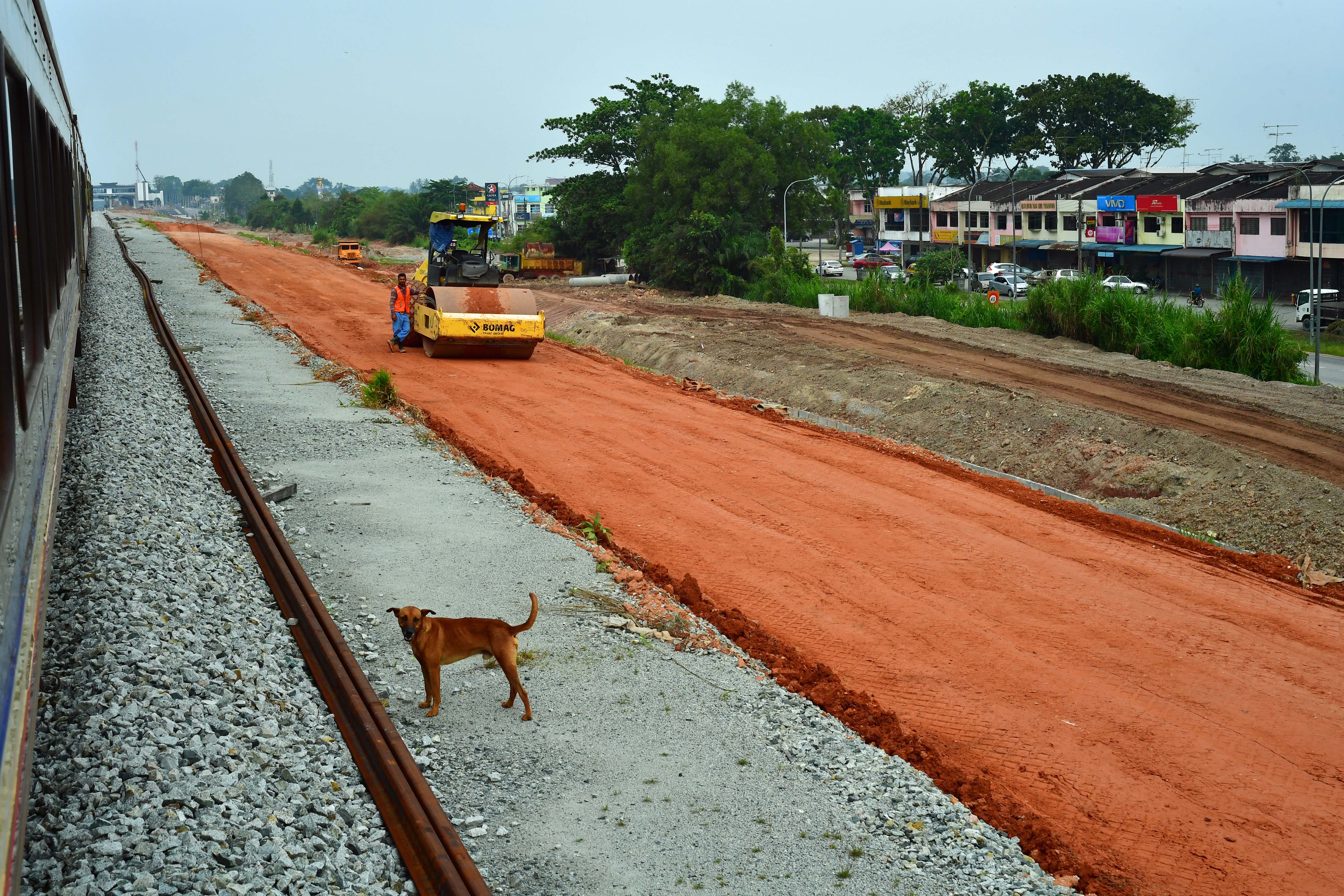

Double tracking preperations South of the new station at Layang-Layang which can be seen in the distance.
Layang-Layang station showing the approach roads and other works which form part of the contact.
The new stations are substantial with all modern facilities, including being fully accessible and with level boarding with the new trains.

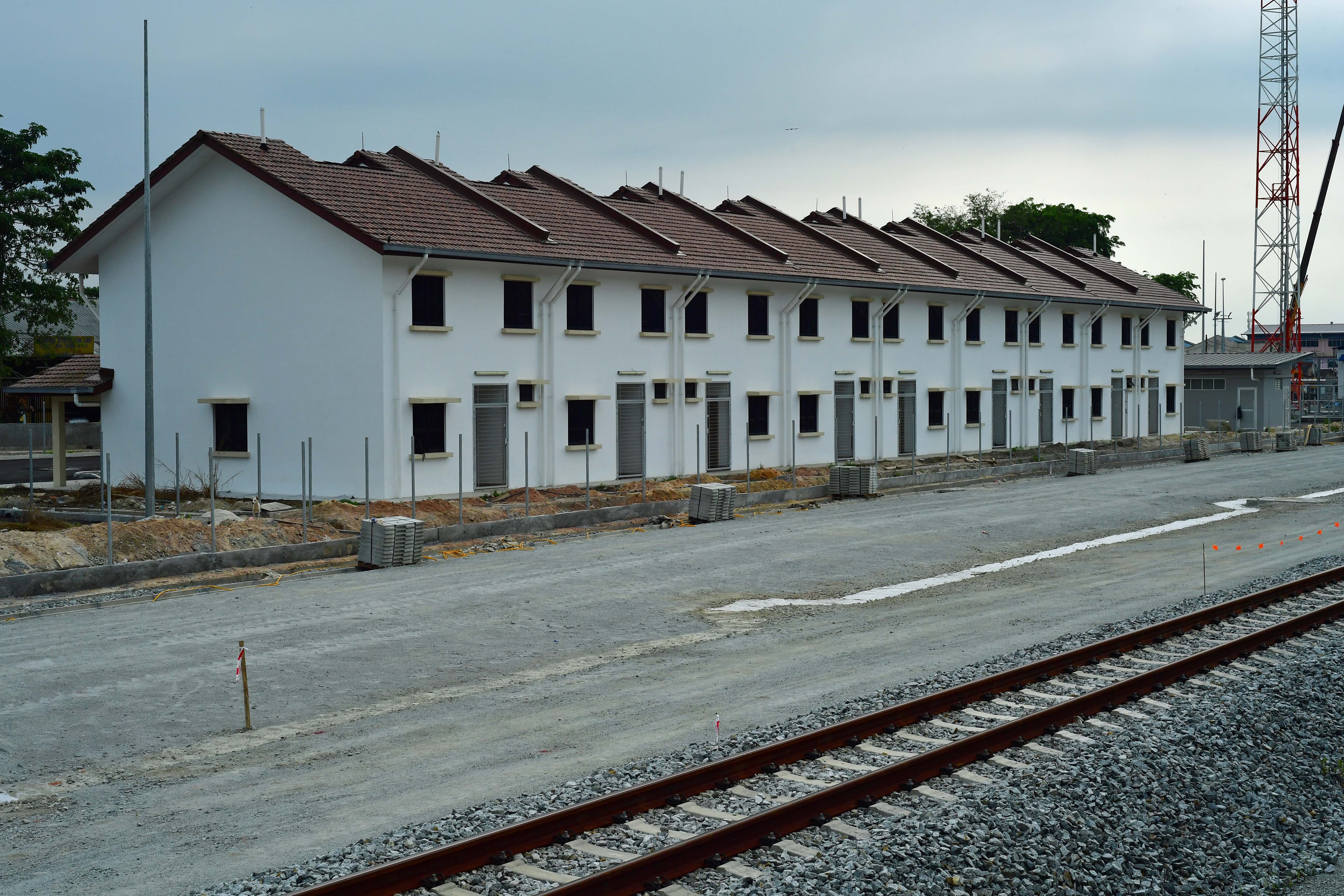

The modern take on railway cottages. Each station is being provided with staff housing. This is Layang – Layang.

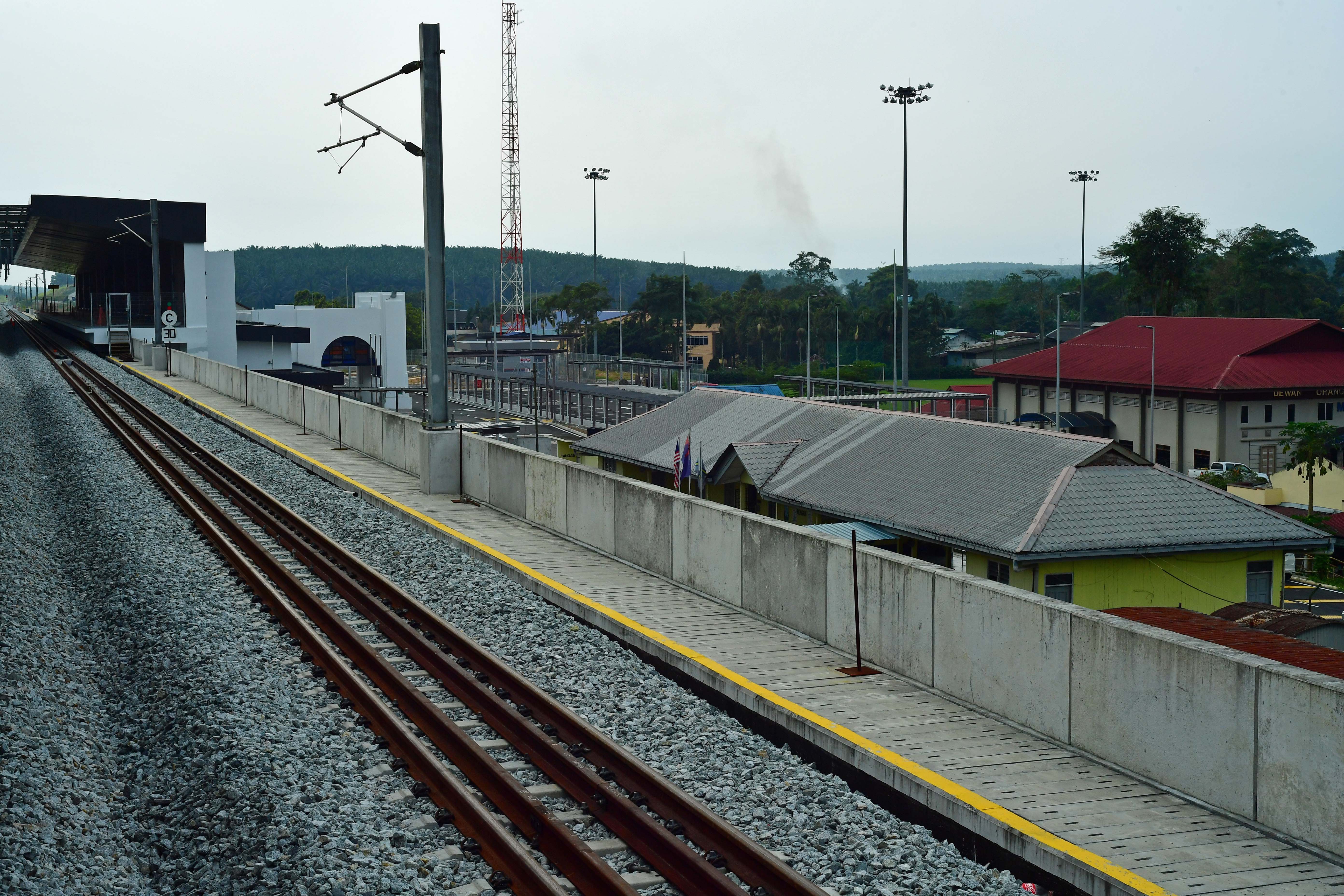

Here’s a real contrast that shows the substantial difference between old and new at Renggam. The new station’s been build on a viaduct. The roof to the right is that of the original station building on the original rail level.

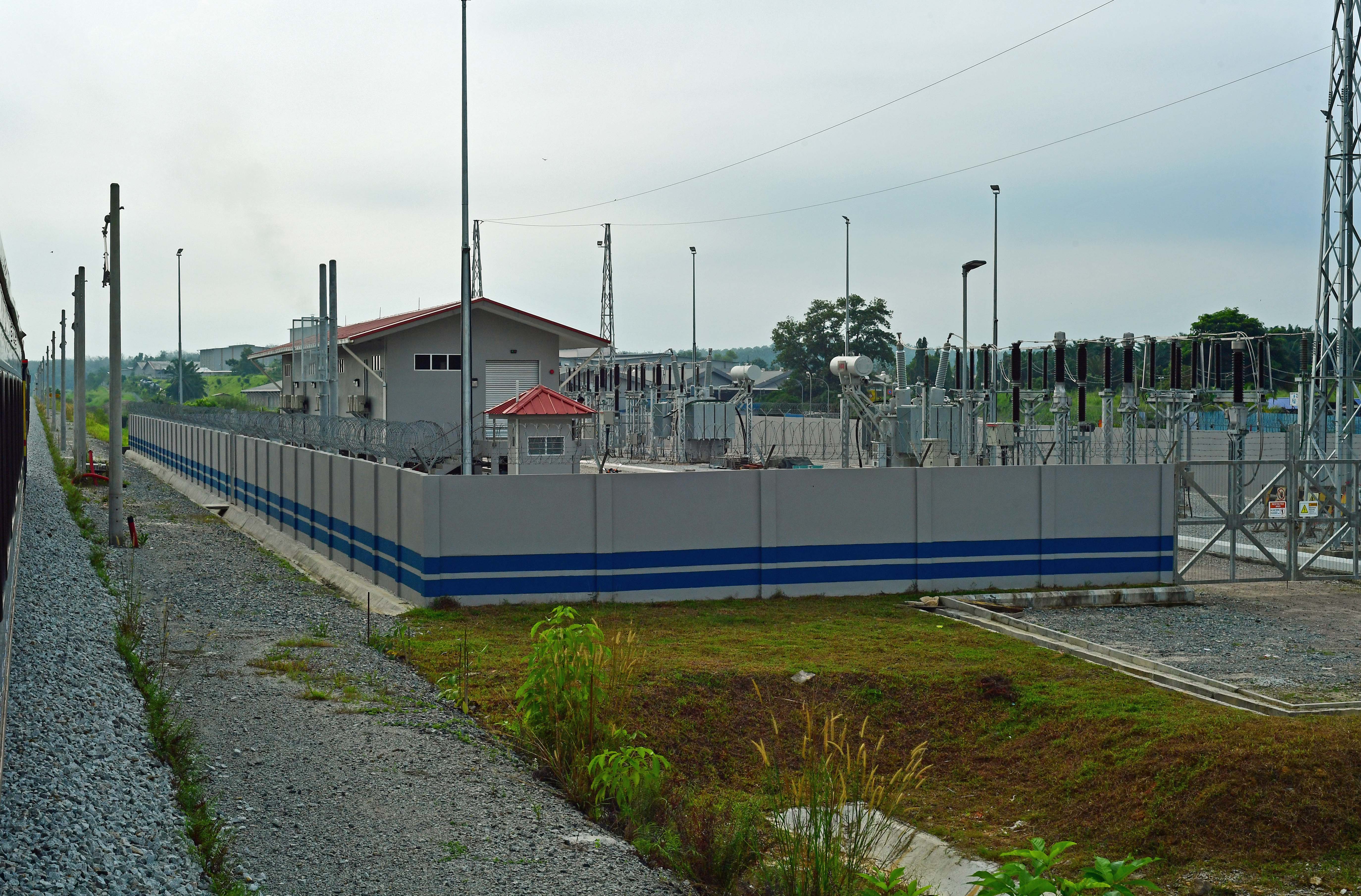

A new electricity substation at Mengkibol which will feed power to the 25kv overhead wires.

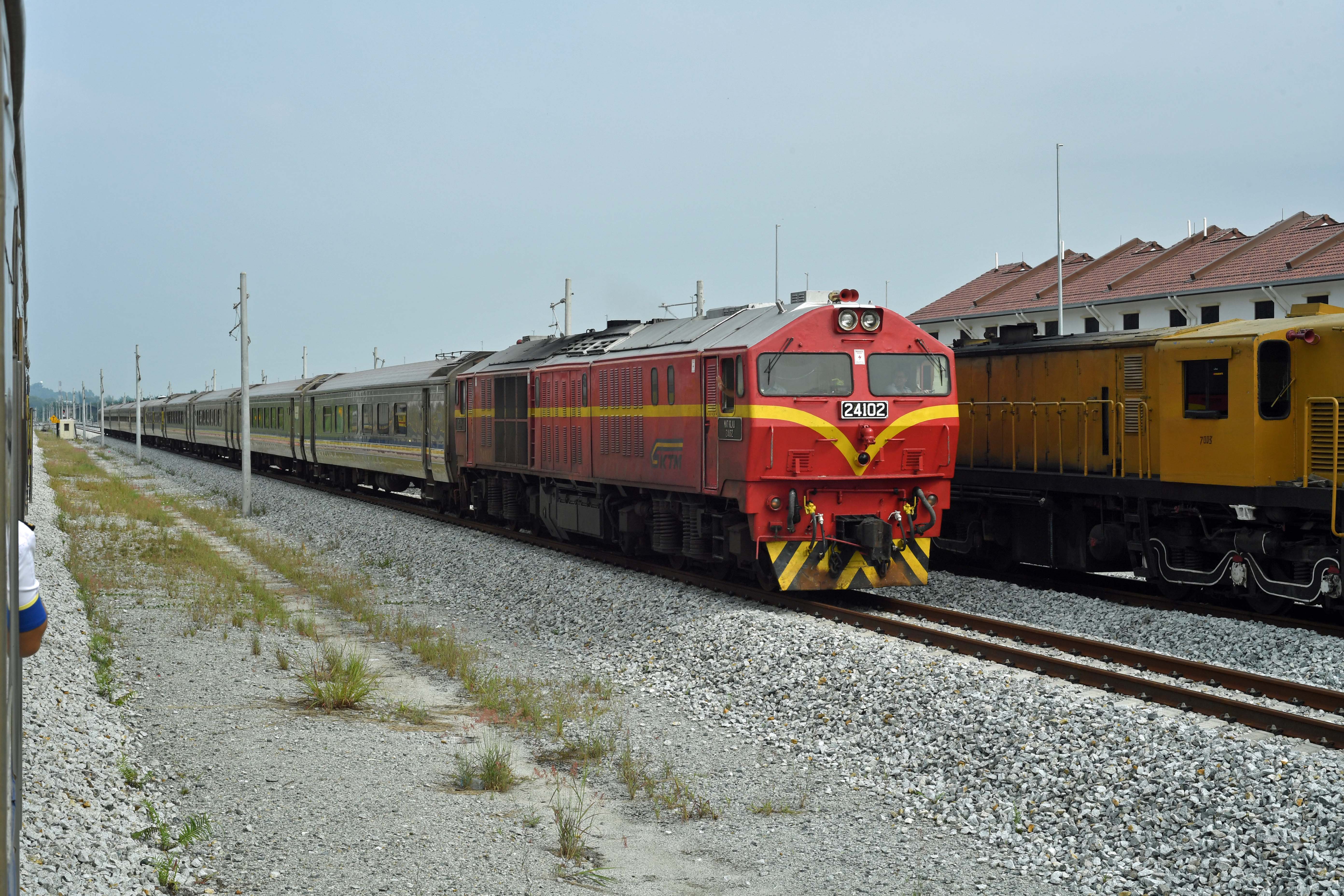

Our train arrives at Mengkibol. The scale of the rebuilding becomes obvious in views like this.

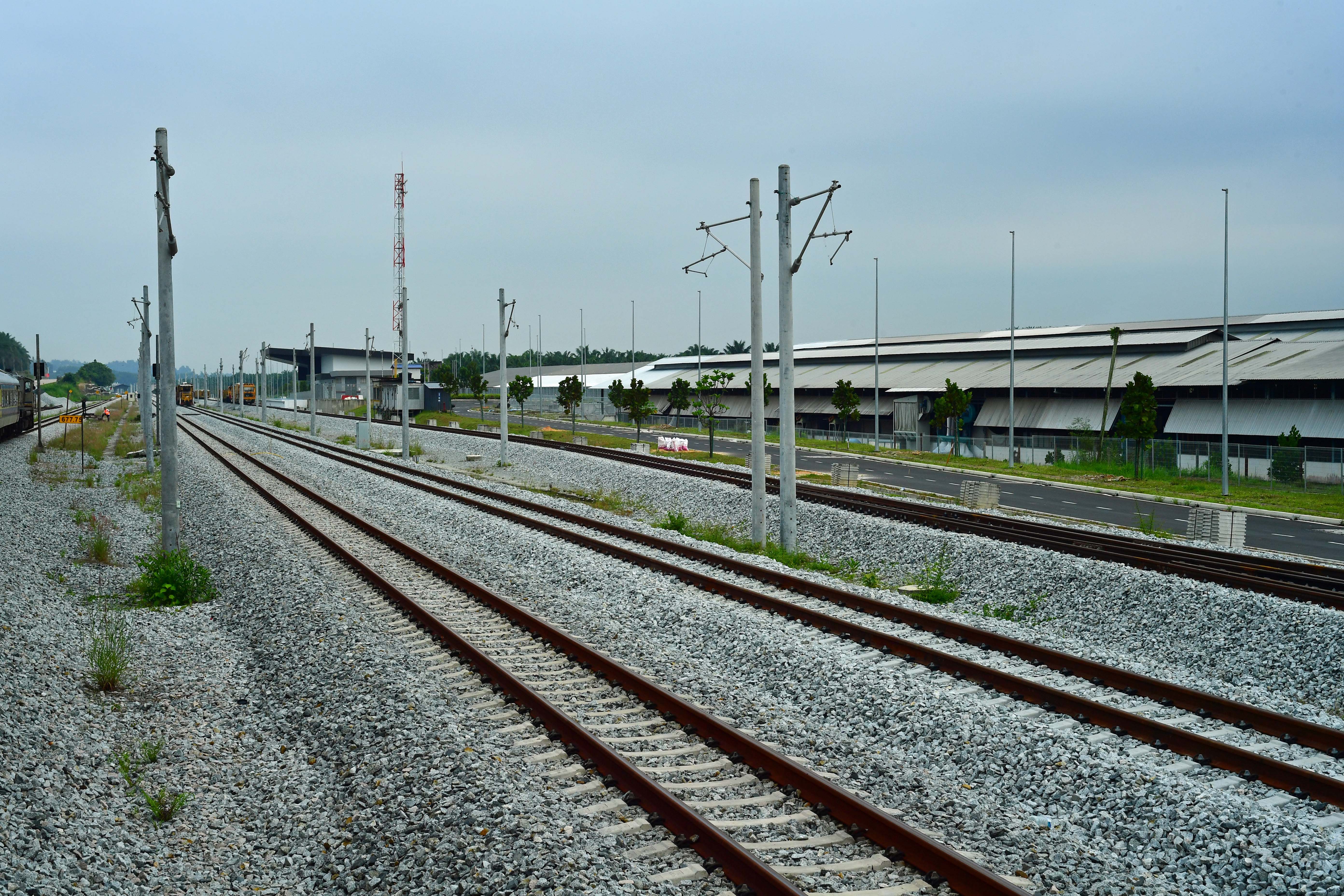

Mengkibol has been laid out with extensive sidings. At the moment it’s used as a base for a lot of construction trains, including this one,top and tailed by two ex-Indian Railways YDM4 locomotives.
The sleeper train from Kuala Lipis on the ‘jungle railway’ as the East coast line is still sometimes called passes us at Mengkibol on it’s way to Johor Baru. It’s hauled by 24102 ‘Mat Kilau’, one of 26 such 2,400hp locos supplied by Hitacahi in 1987.

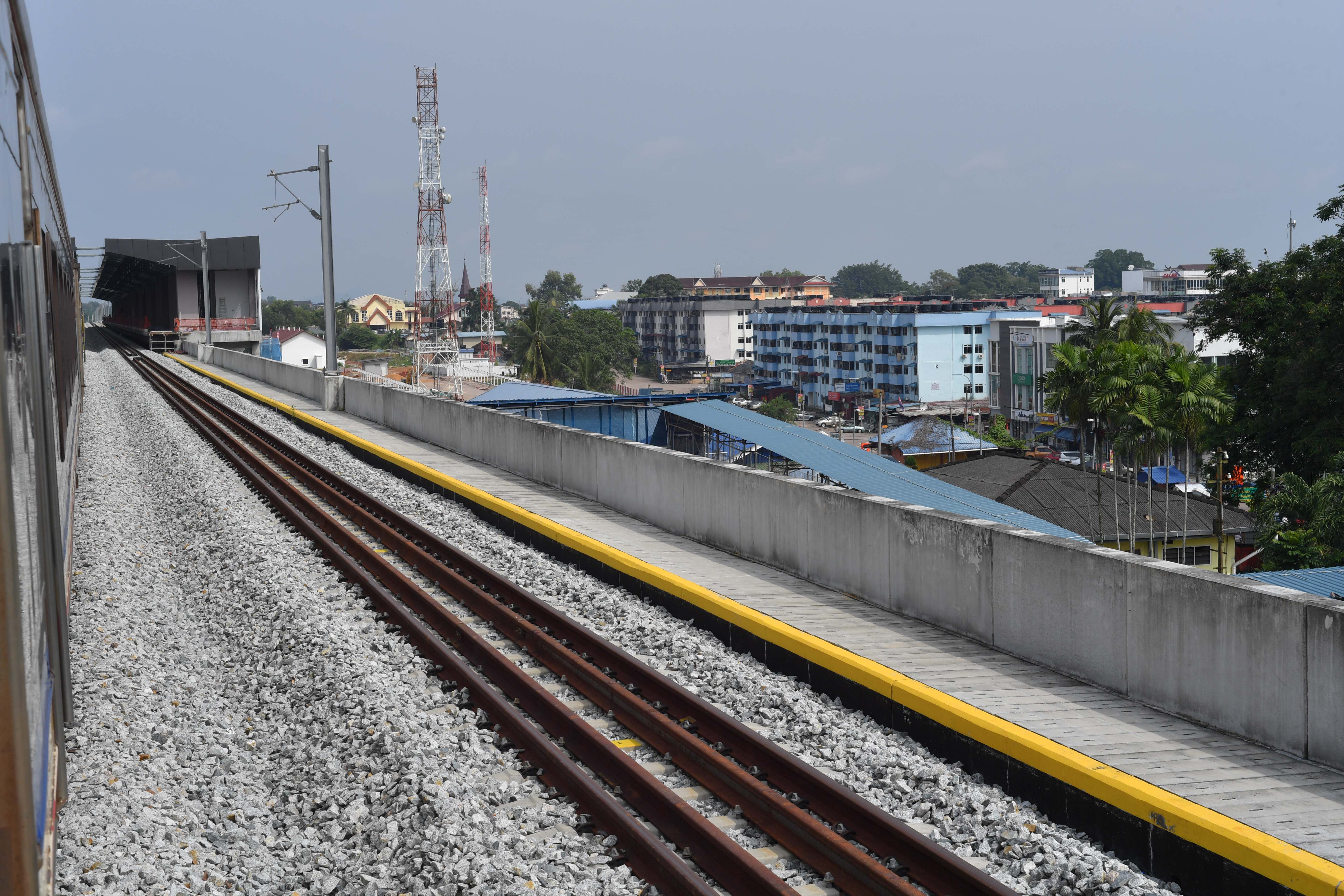

Another greatly elevated station, this time at Kluang. The blue tin roof to the right leads down to the temporary station building from the makeshift platform on the other side of my train.

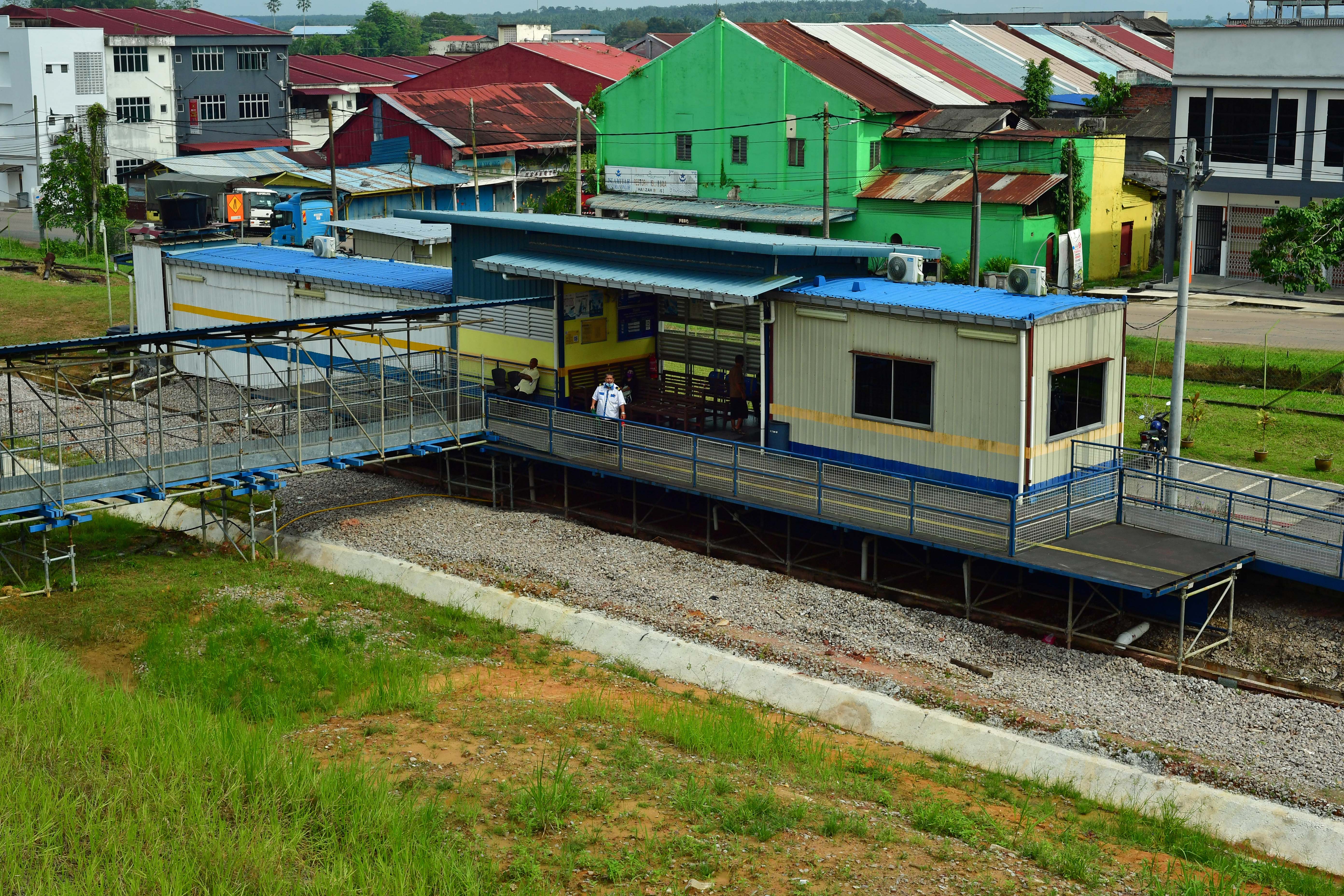

Another temporary station building, this time further North at Paloh.

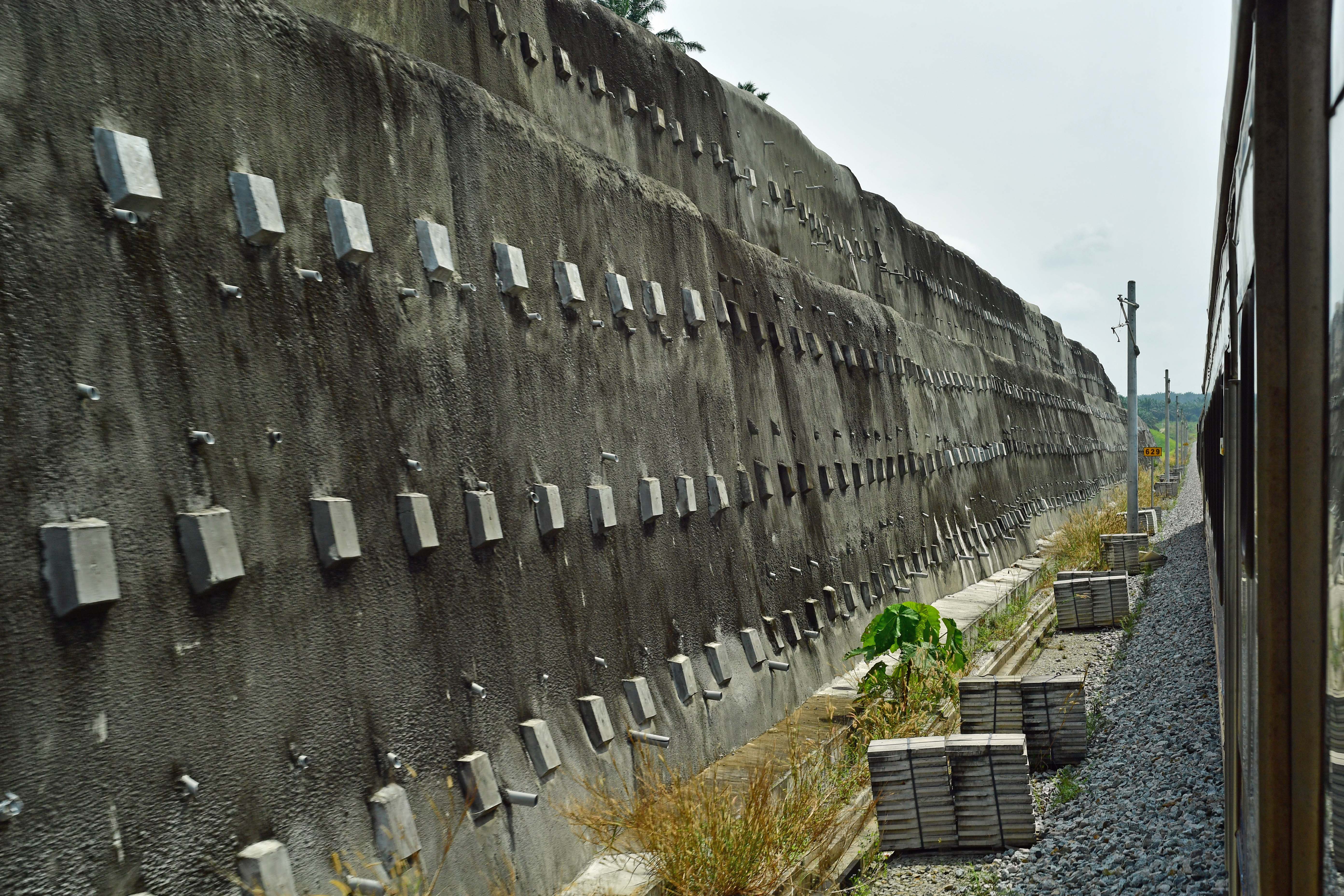

More substantial cutting stablisation. This time at Bekok.

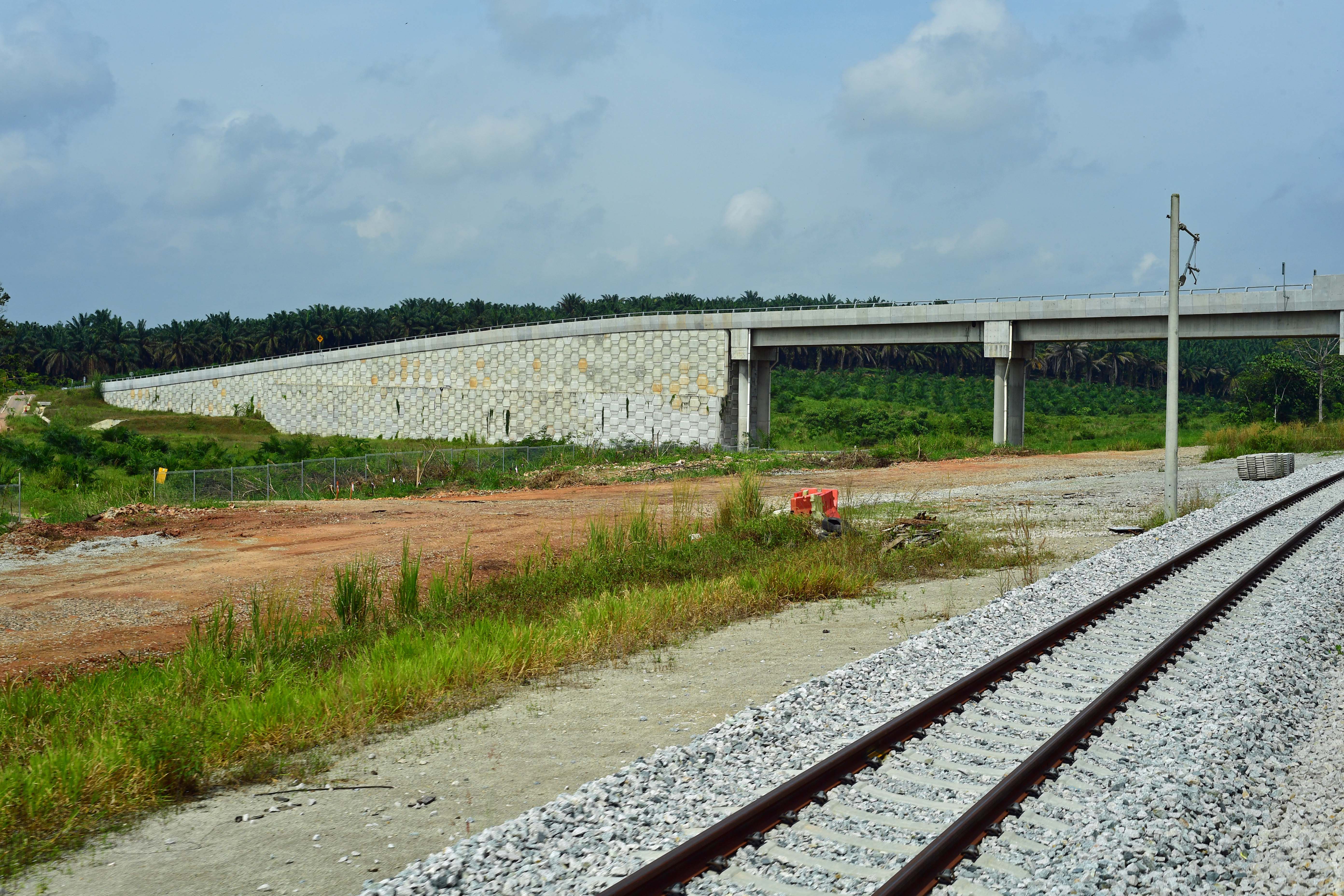

All the old railway level crossings have been abolished (and all the lineside fenced to stop two or four legged creatures straying onto the tracks) in order to raise line speeds and prevent the risk of a derailment. This bridge is between Bekok and Labis.

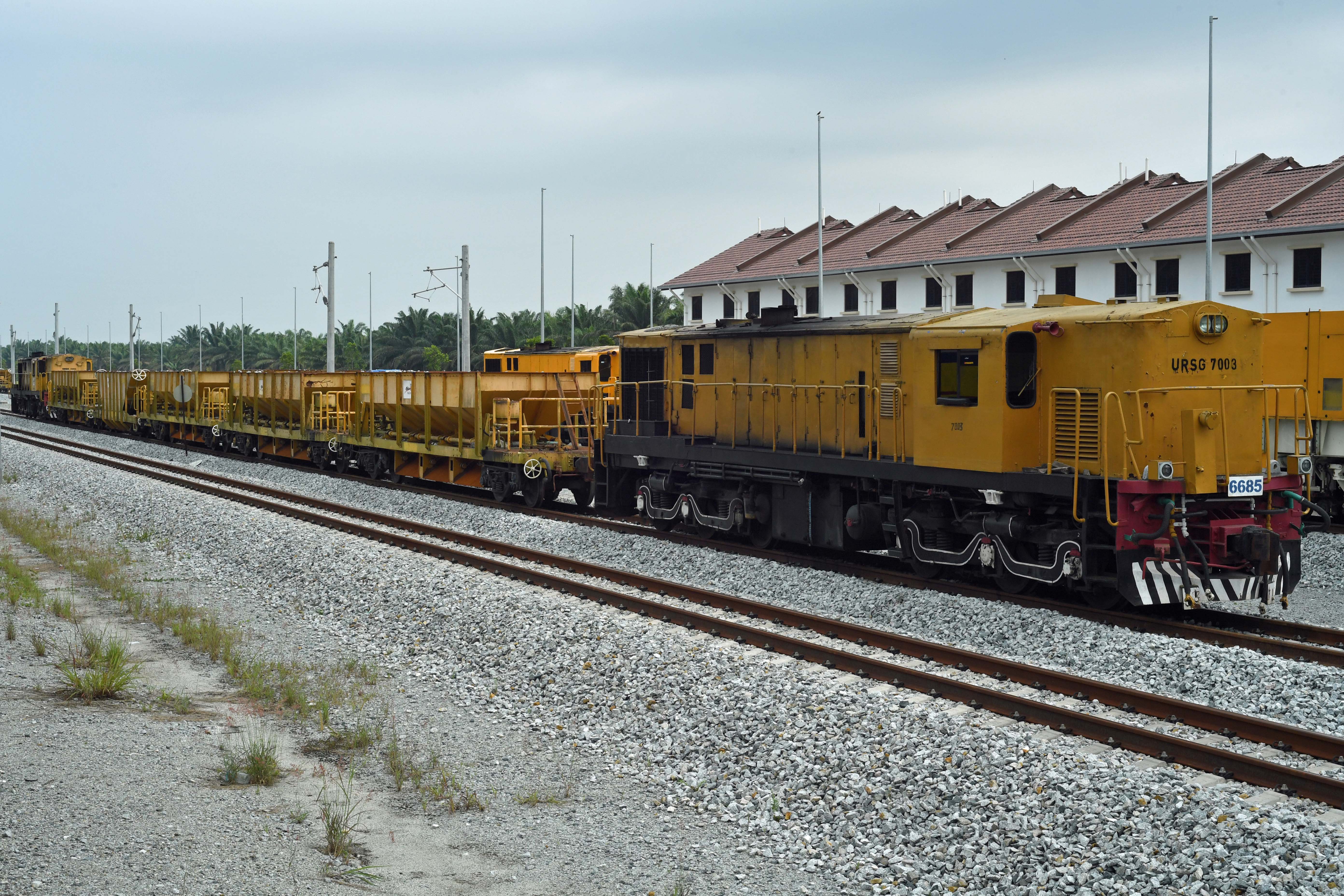

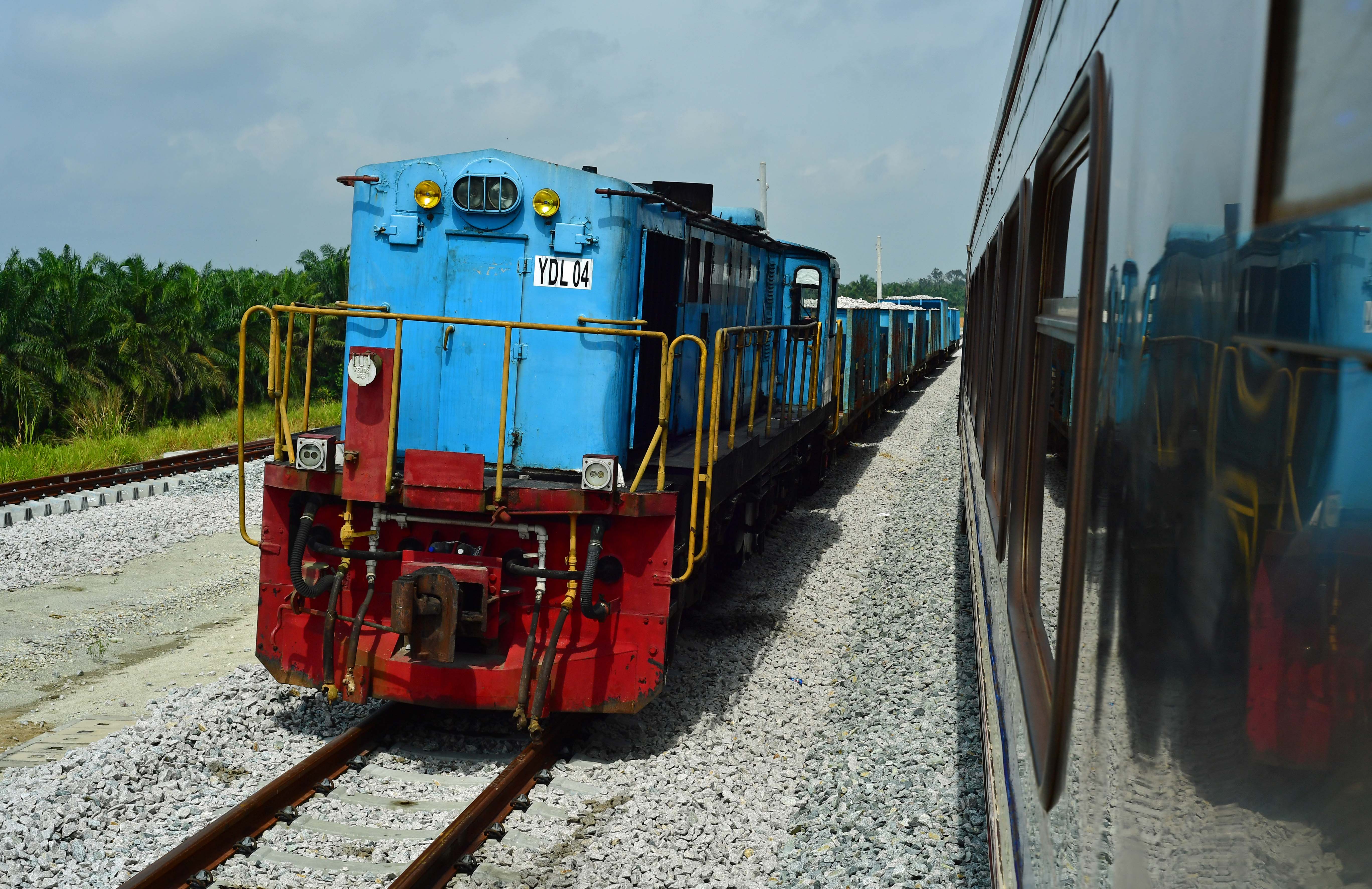

Another ex-Indian railways Class YDM4 on ballast duties. This time at Labis.

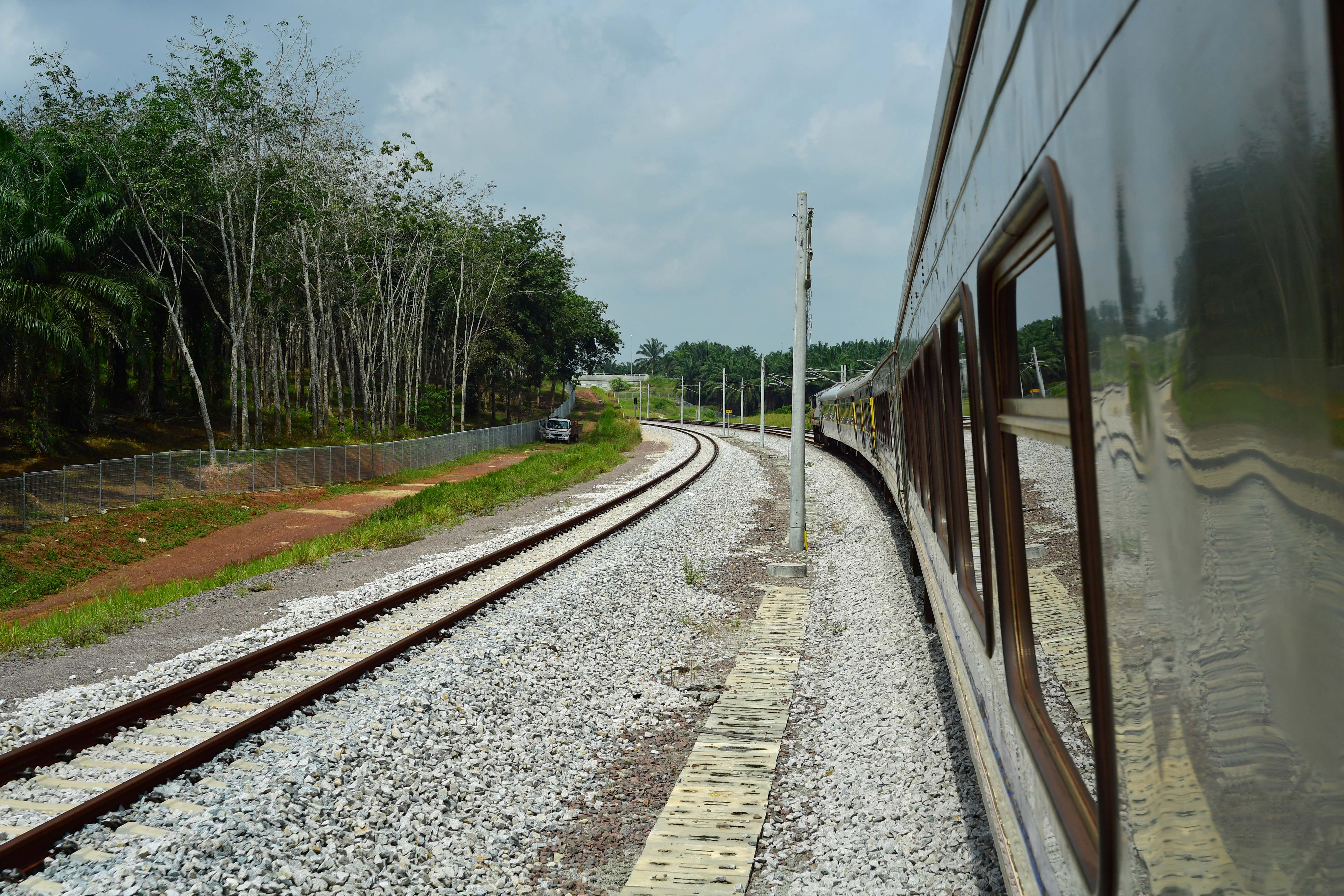

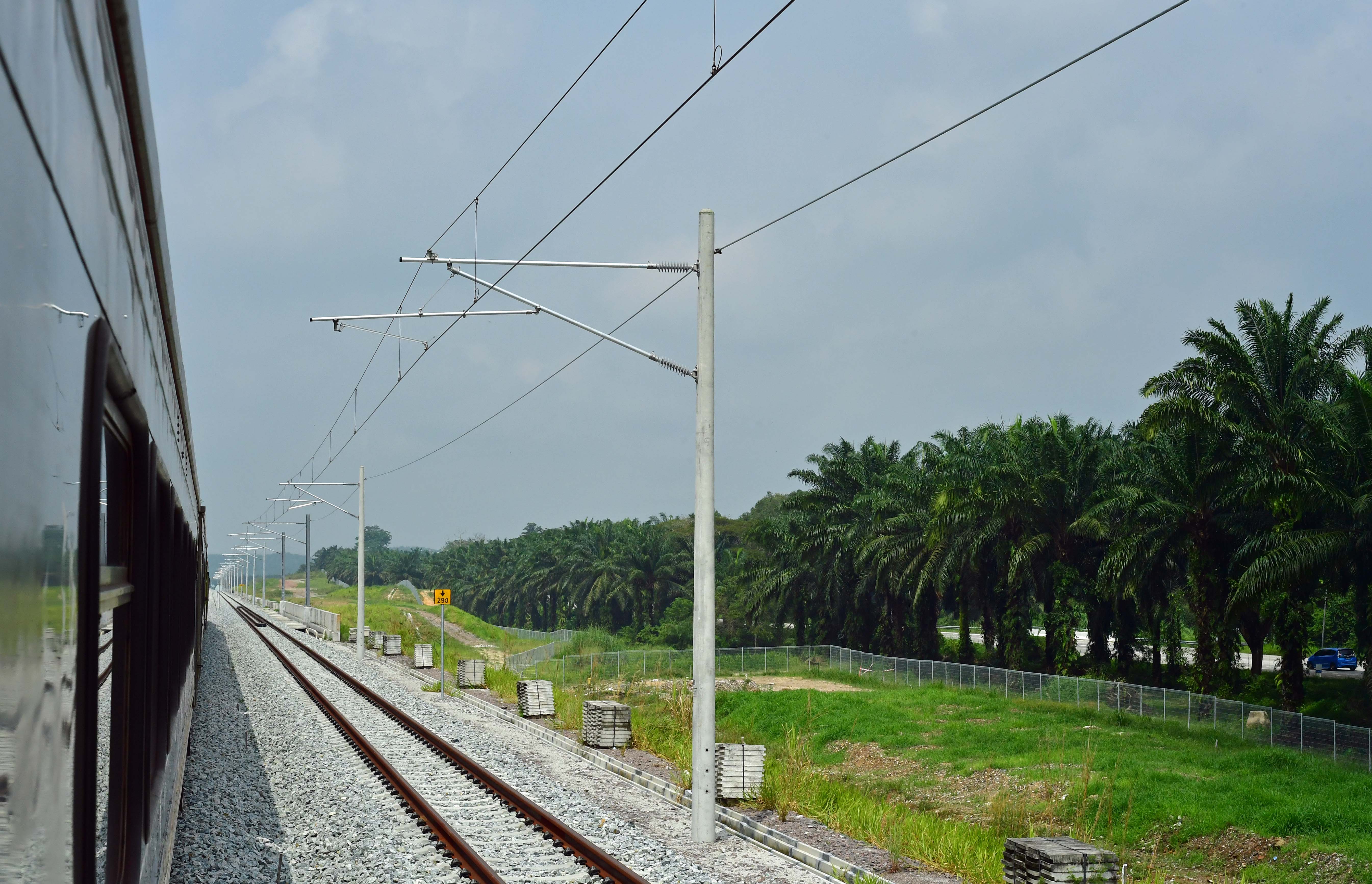

The ‘knitting’ (the actual overhead wires) start to appear from milepost 605, South of Genuang.
Here’s progress on the rebuilding South of Genuang. Moat of the infrastructure’s complete, including the fencing protecting the line. All that remains is to complete wiring the OLE.

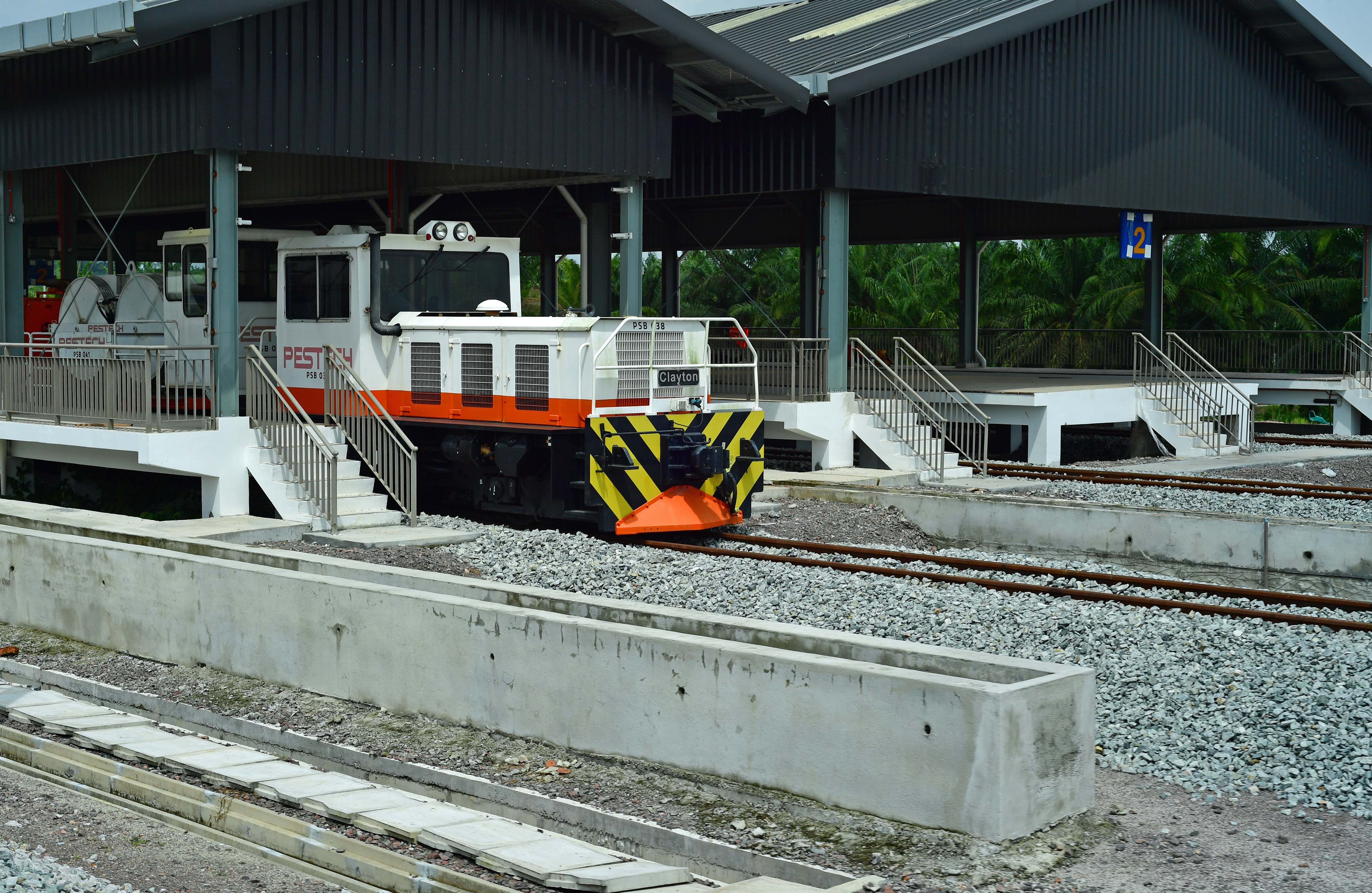

I found this modern British built locomotive from Clayton in this new three-road shed at Genuang. It’s branded ‘Pestech’ (I’m assuming there’s a clue in the name there) but I’ve no idea what the purpose of the new shed will be.

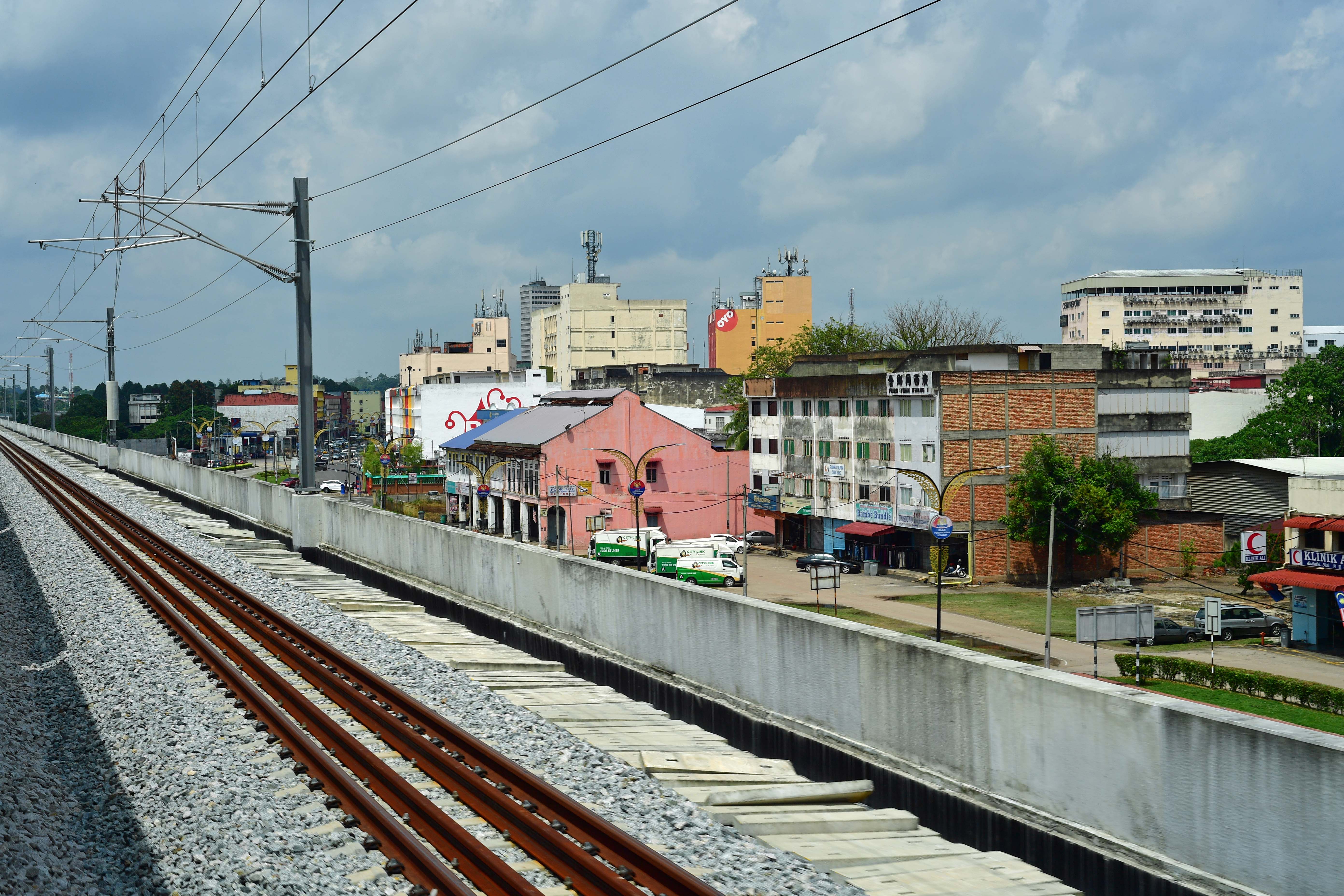

High above the streets, the new elevated railway passes through Segamat. It’s such a contrast to the original line.

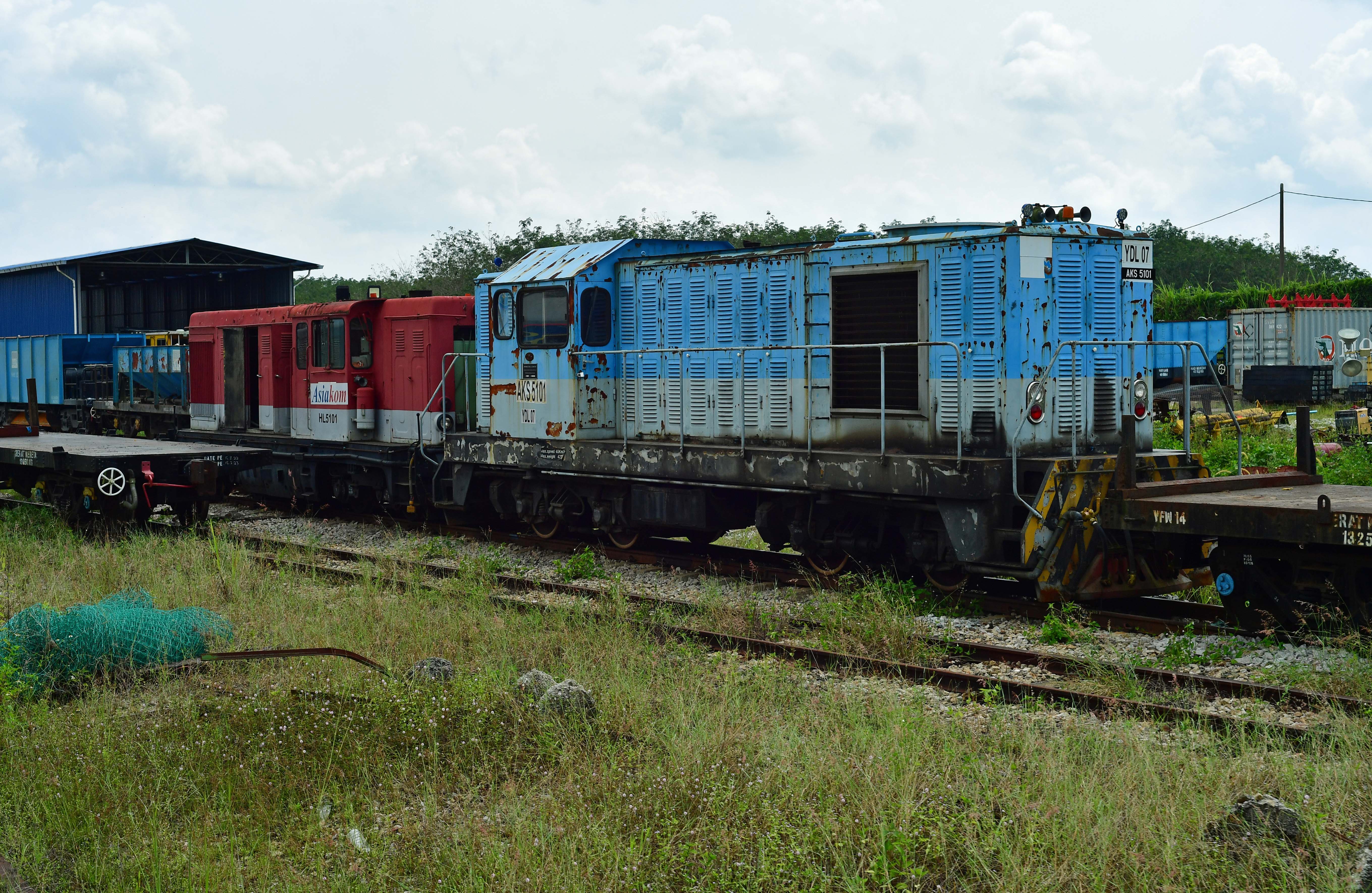

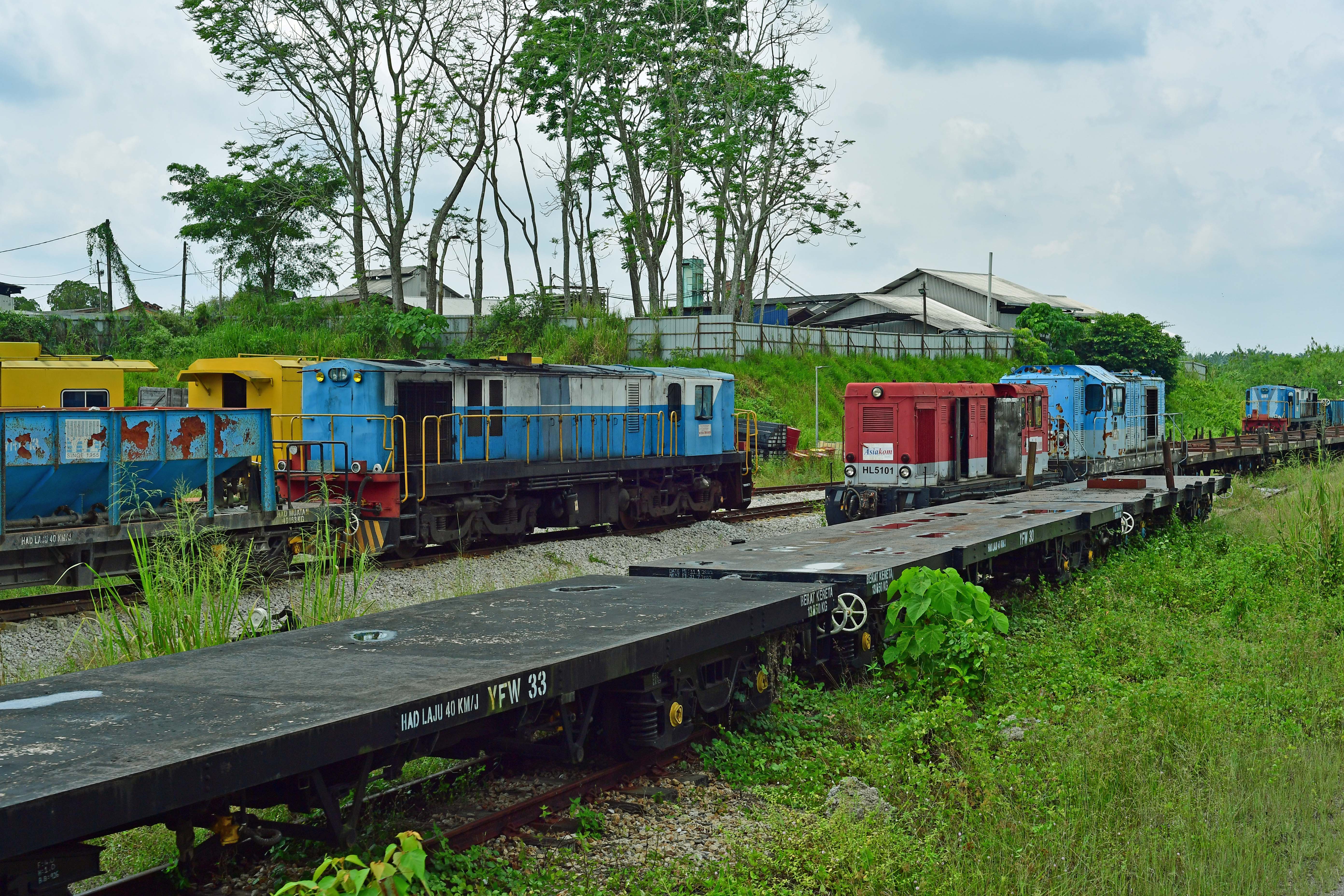

A variety of vintage traction used on construction trains stabled or dumped at Batu Anam near Gemas, Furthest left and right are two ex-Indian Railways YDM4s but I haven’t a clue what the origins of the two centre locos are.
A closer look at the other two old locomotives at Batu Anam. Any help in identifying them is appreciated.

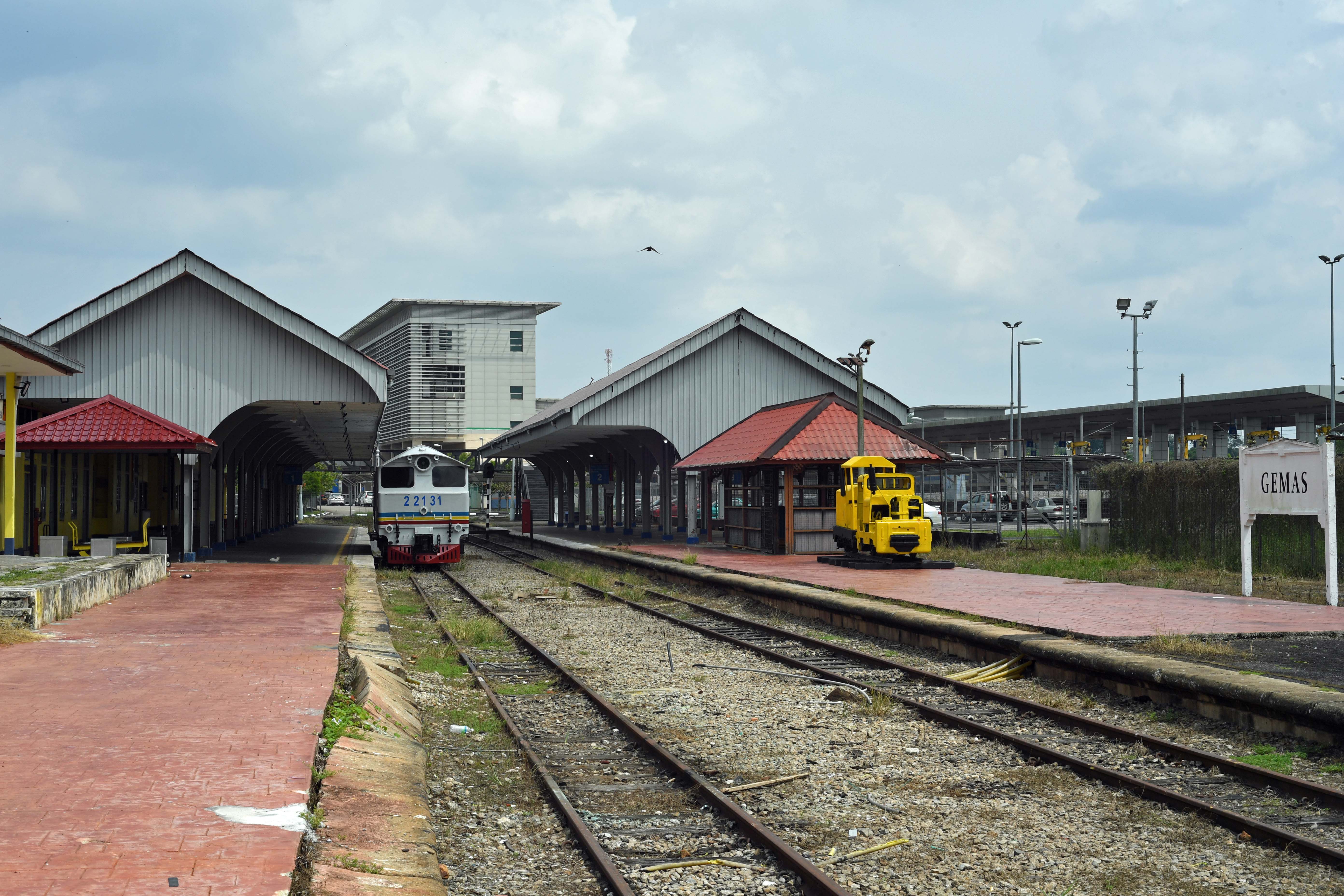

Journey’s end at Gemas, junction with the East coast railway. Here’s the old station which survives intact with the massive new station behind and to the right. There were plans to turn the old station into a museum, hence the presence of various items of old rolling stock. There was also going to be an exhibition inside the buildings but everything is closed up and empty. The main building used to be home to an excellent restaurant but this has vanished. I’m assuming it was a victim of Covid. A little cafe remains but that only sells hot and cold drinks – and boiled eggs.

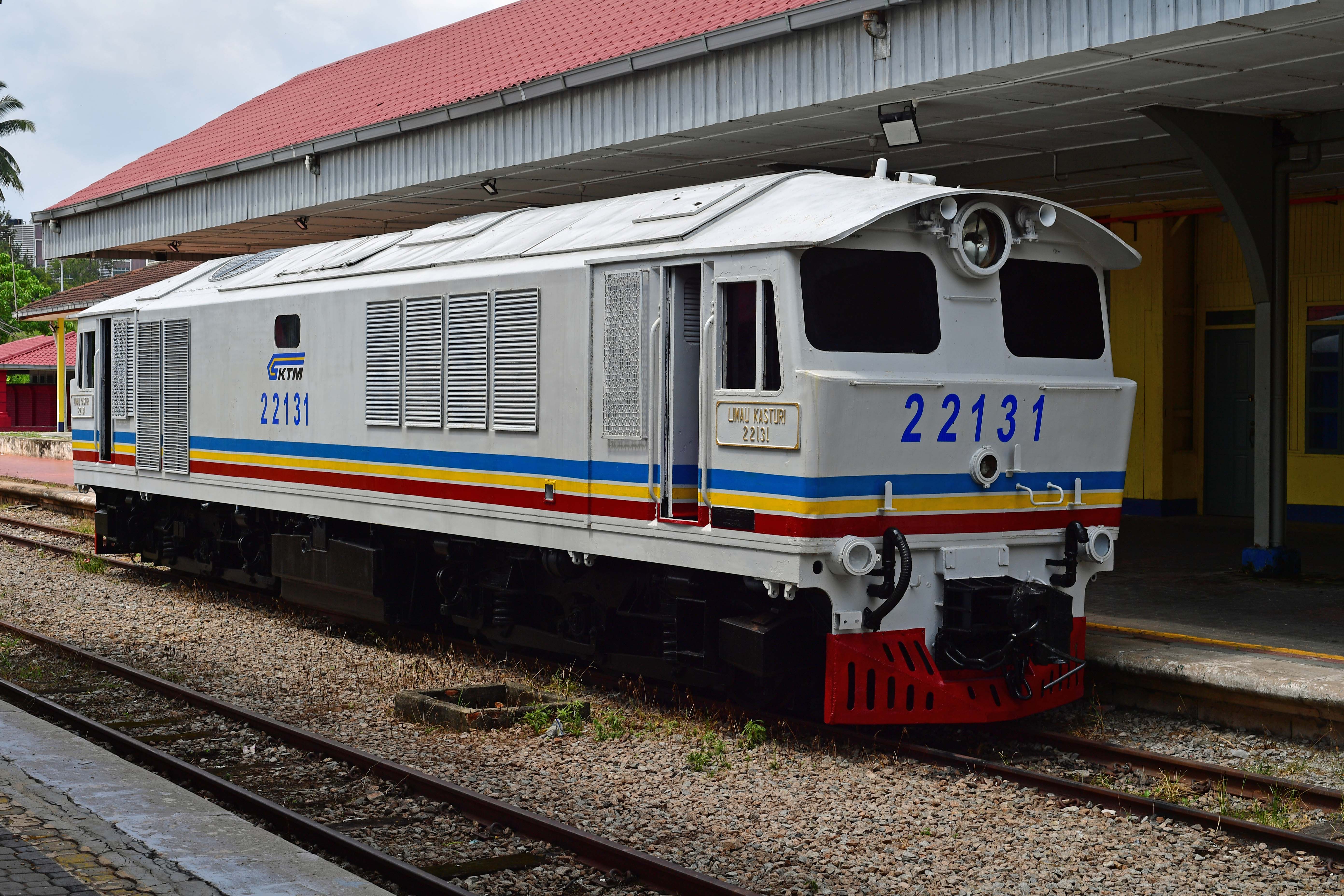

The main exhibit which has recently been repainted is 22131. 40 Co-Co Class 22s were designed by English Electric and built by Metro-Cammell between 1970-71. For many years they appeared all over the Network but were retired from the 1990s onwards. Three (22109, 22115 and 22127) were sold on to be used on contractors trains, rebuilding the lines North of Gemas, but none appear to remain in service. 22131 is one of four (the others being 22121 (renumbered as 22110), 22125 and 22134 which has been preserved.

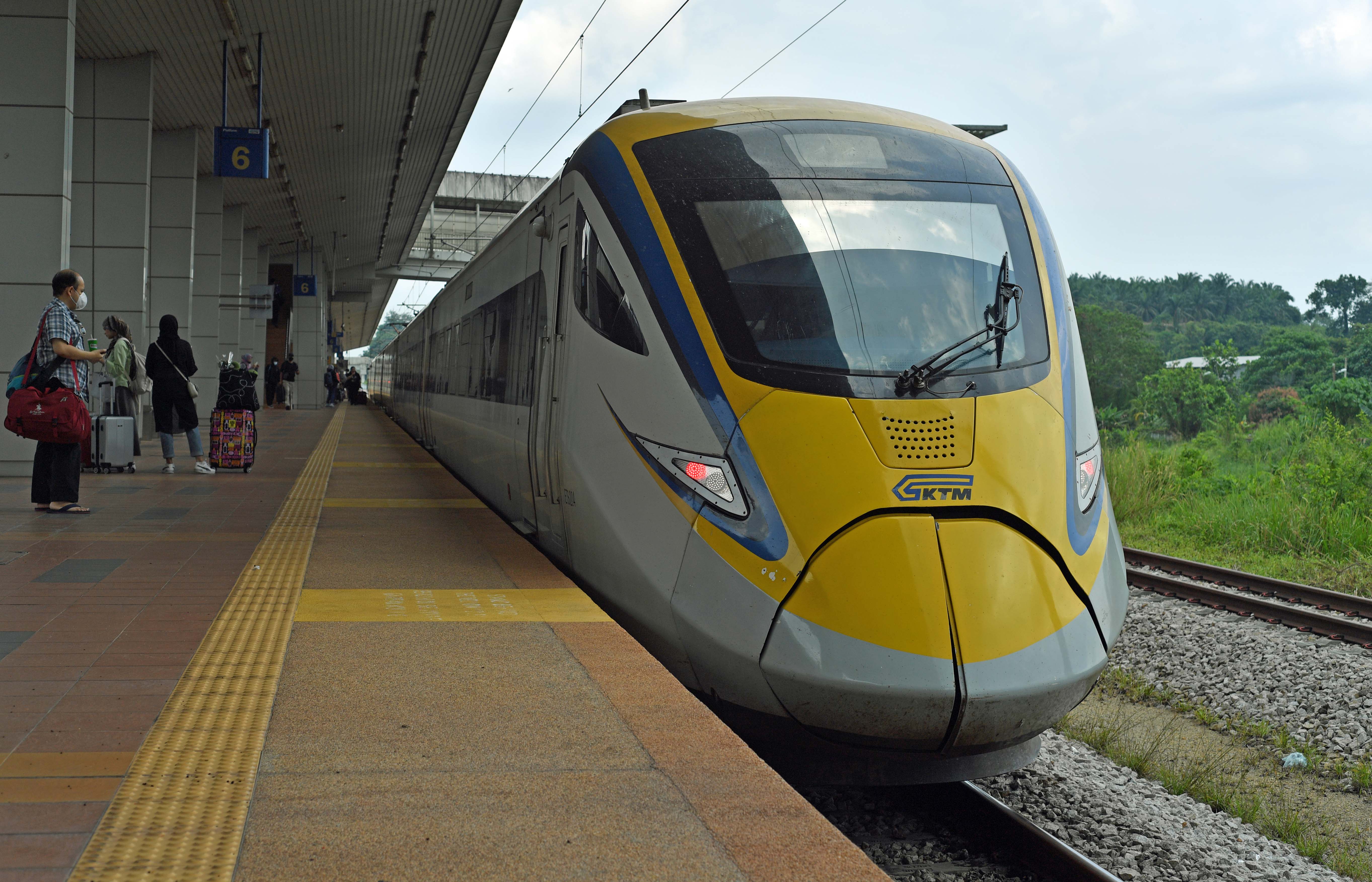

Here’s what the future looks like. A Class 93 waits to operate the 15:20 service from Gemas to Butterworth via Kuala Lumpur. These 6-car EMUs are built by CRRC Zhuzhou, China. 19 of these trains arrived between 2013-2018 with another 10 on order. Powered by Siemens traction equipment, the trains normal maximum operating speed is 140kph. They’re clean, quick and comfortable, but not as much fun as the old trains!

As you can see, it’s not going to be long before the rebuilding of the line’s finished and loco-hauled trains become rare beasts on Malaysian railways, so – if you want to sample them I’d do so this year. If you’re interested in other photographs of Malaysian railways I have a collection from 2011-2012 which you can find here. They certainly show how much things have changed!
