On Friday I paid a visit to Stalybridge station to see the result of the engineering blockade that had transformed the stations Western junction. This is been totally remodelled and resignalled. The resignalling has extended to the Eastern side of the station although the track layout here remains unchanged. As well as track and signals a large number of overhead electrification masts and portals have appeared, although there’s still many more to be installed at further weekend engineering possessions before the wires can be extended.

Here’s a selection of pictures showing how the place looks now.

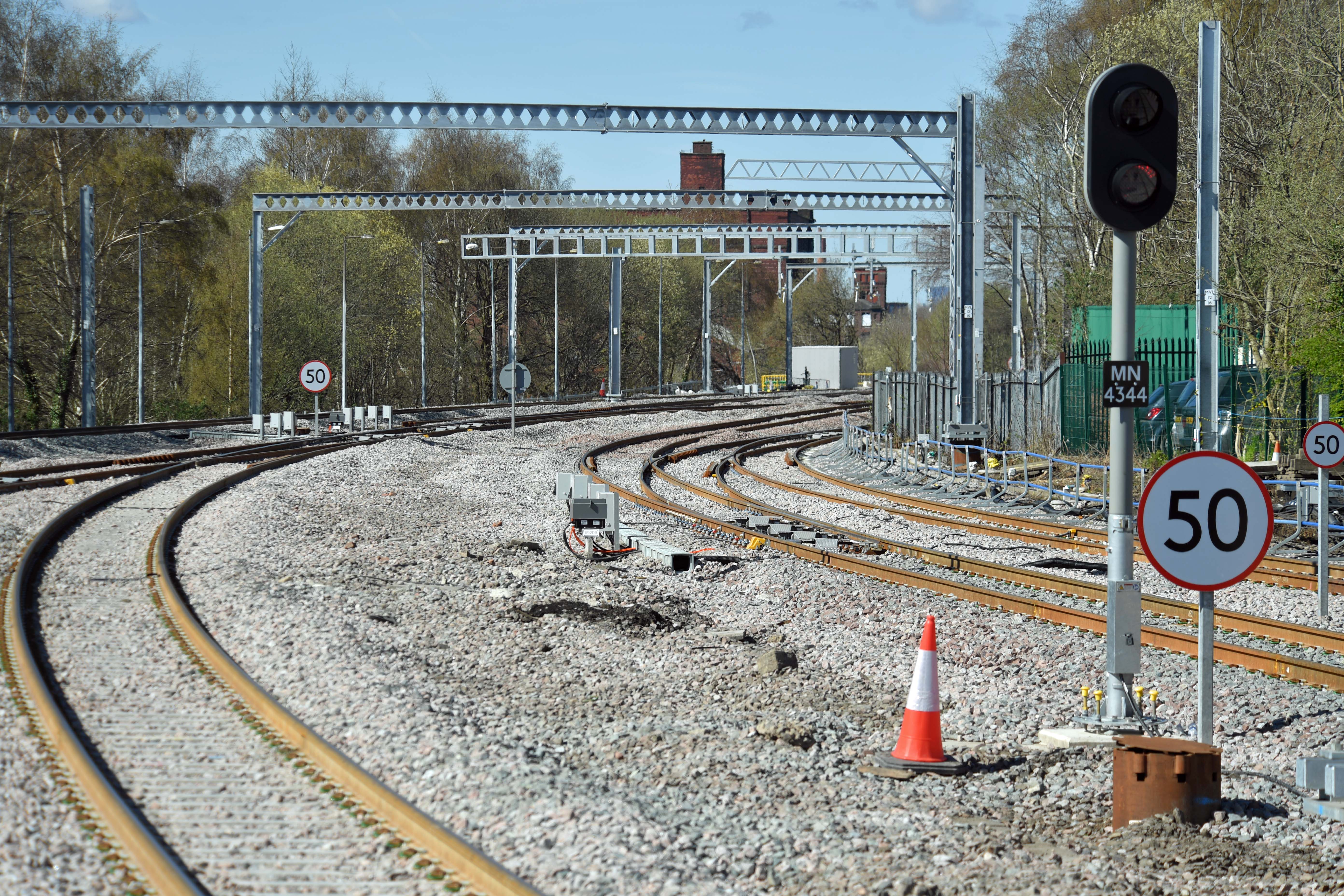

Looking West to Stalybridge Junction from the end of platform 3. This junction was remodelled as recently as 2011. This time some of the switches have been removed and replaced with a flat crossing (just out of sight around the curve). The formations been expanded by the removal of the old ATO oil siding in the far left, which has allowed tracks to be slewed. The remodelling appears to remove conflicts and certainly allows for faster line speeds across the junction.

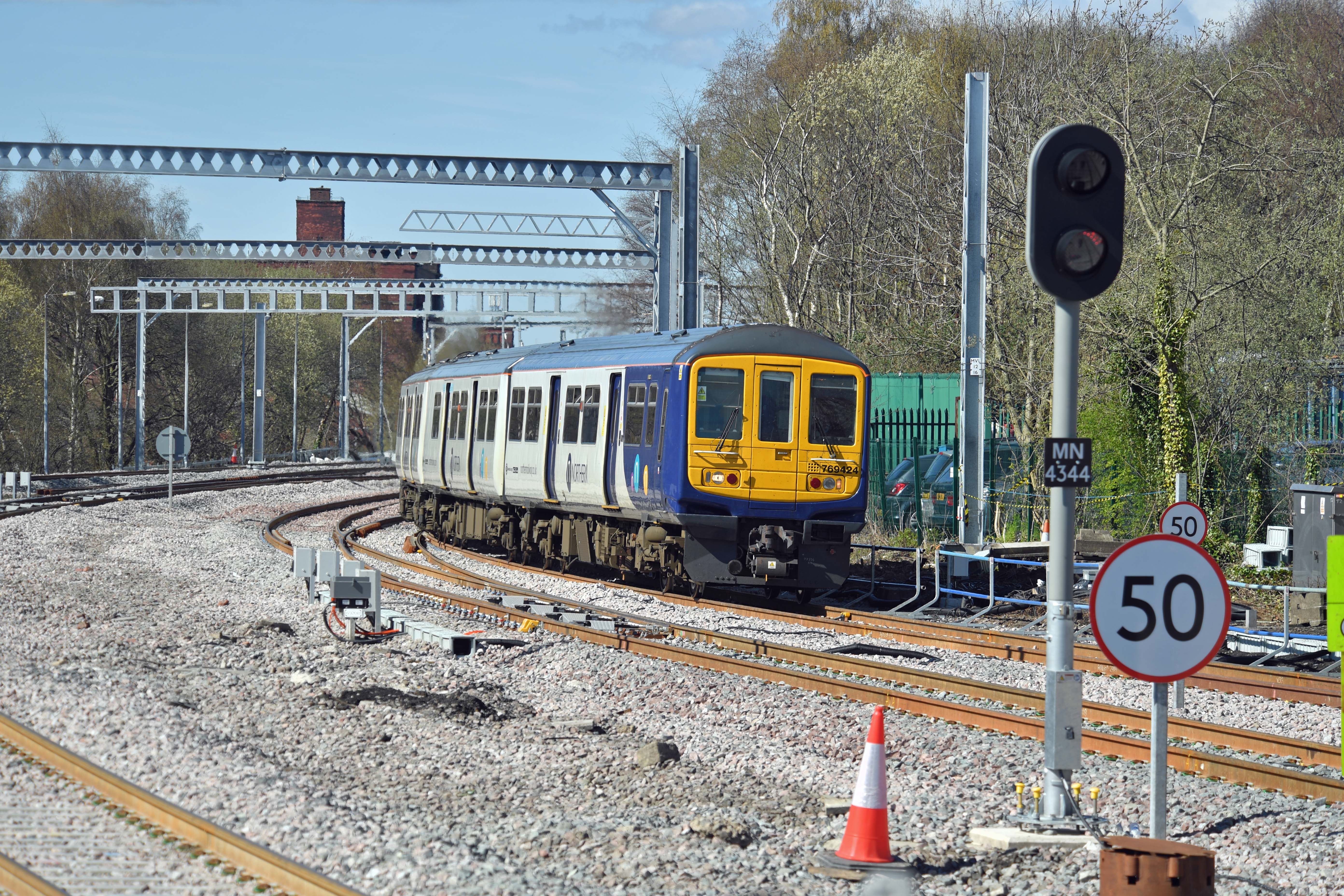

Bi-mode 769424 pulls into the bay platform 5 with a Southport-Stalybridge service.

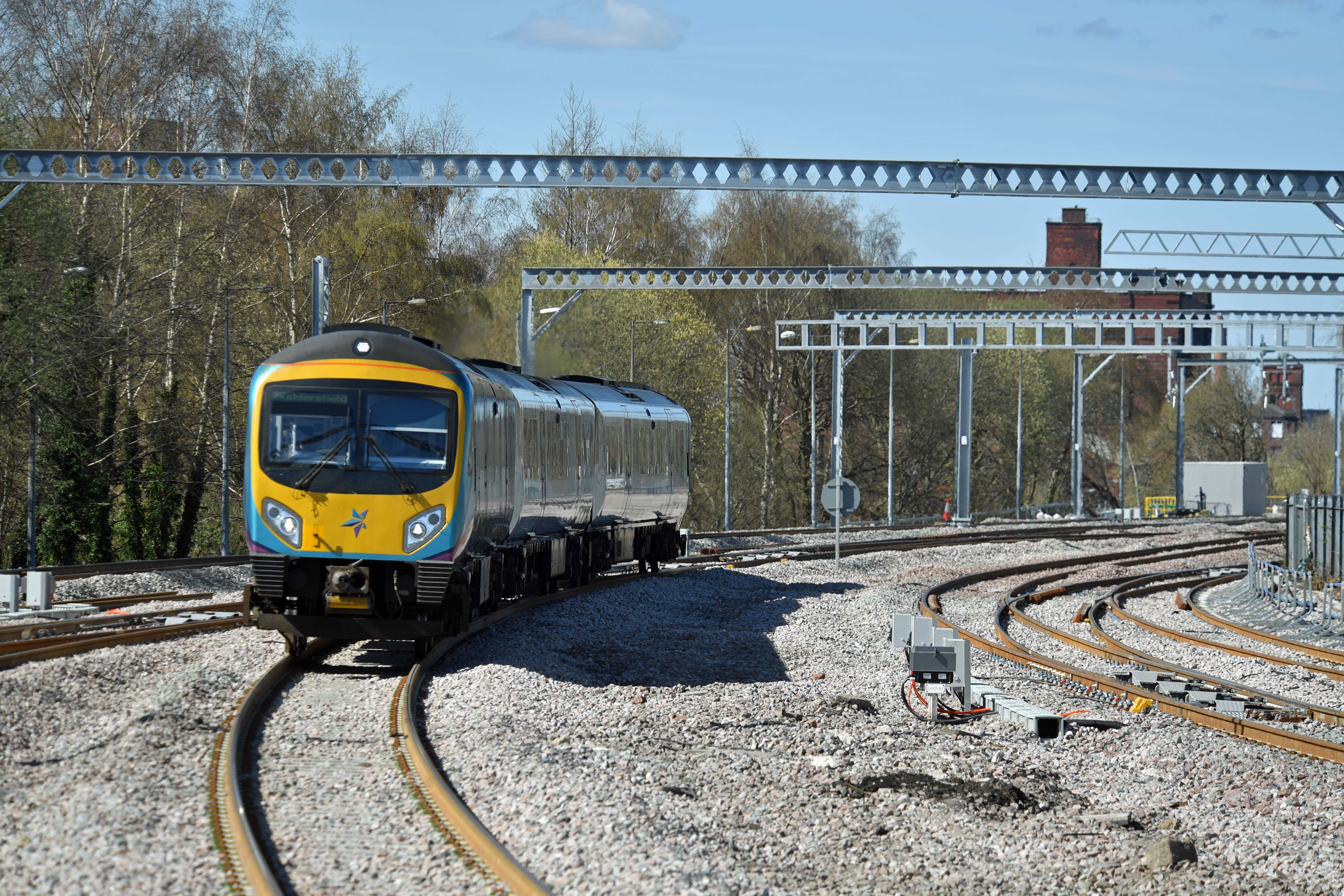

185151 approaches platform 3 working 2E73, the 1158 Manchester Piccadilly to Huddersfield.

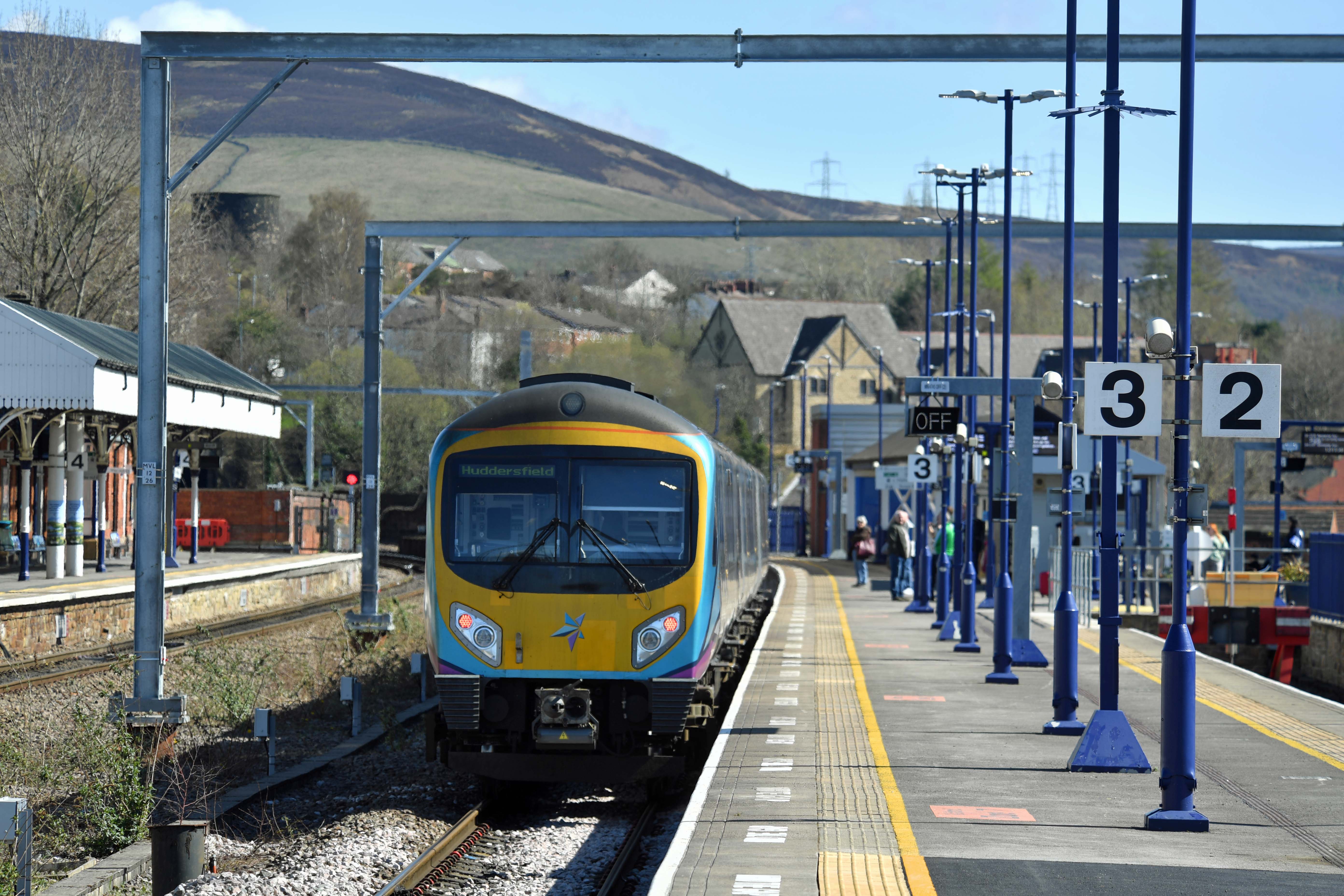

185151 sits waiting time in platform 3. The newly installed portals are very much in evidence.

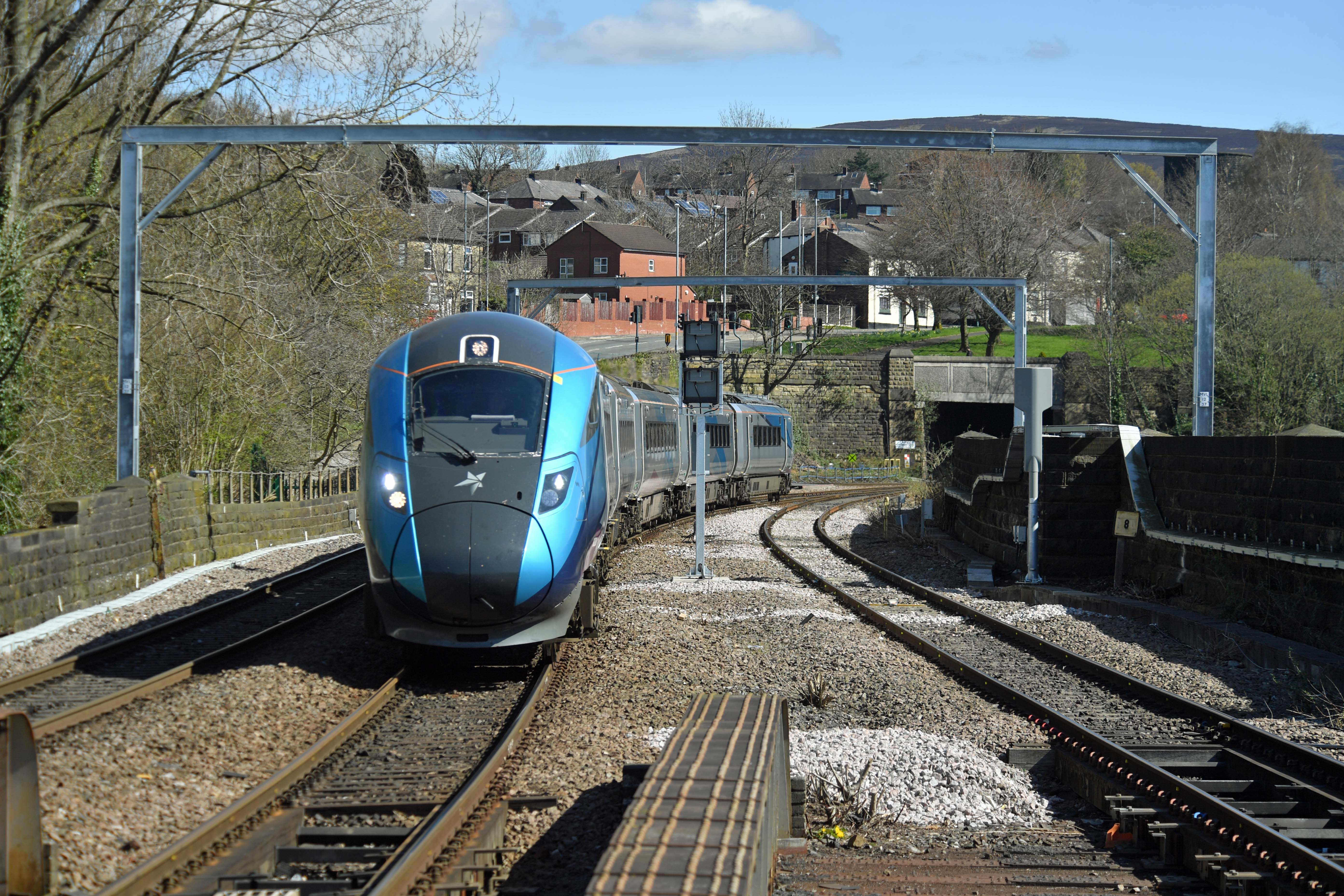

802208 approaches from the East whilst working 9M10, the 1006 Newcastle to Liverpool Lime Street. The new portals have usurped the signal gantry that was installed (at great expense) at this location in 2012.

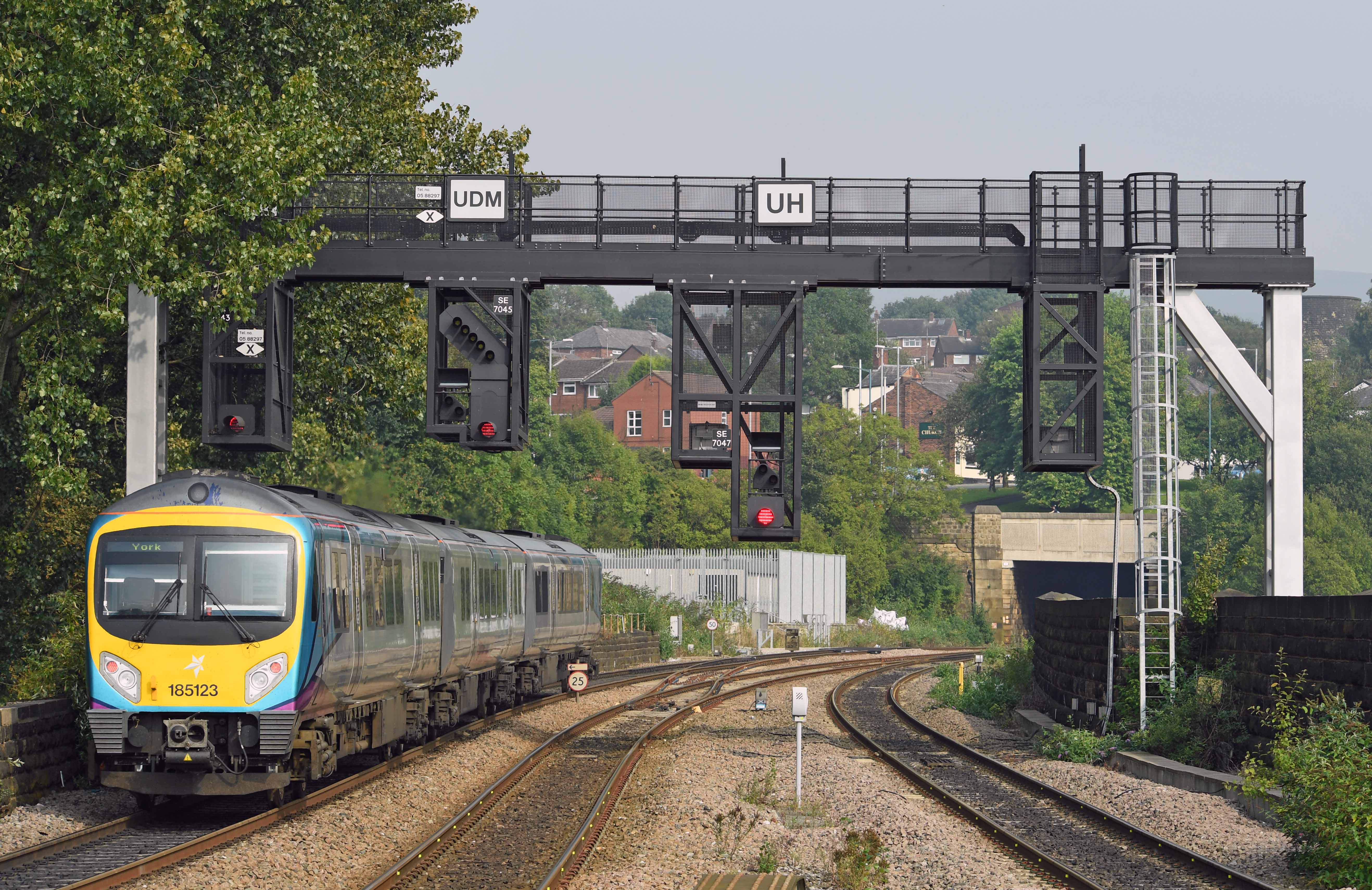

And there it was – gone! The substantial signal gantry that was installed as part of the original Trans-Pennine electrification scheme but (apparently) was now in the way of the revised scheme for some reason. It’s no wonder many rail improvements cost so much money when plans constantly change and investment like this is wasted. It’s seen here in 2016.

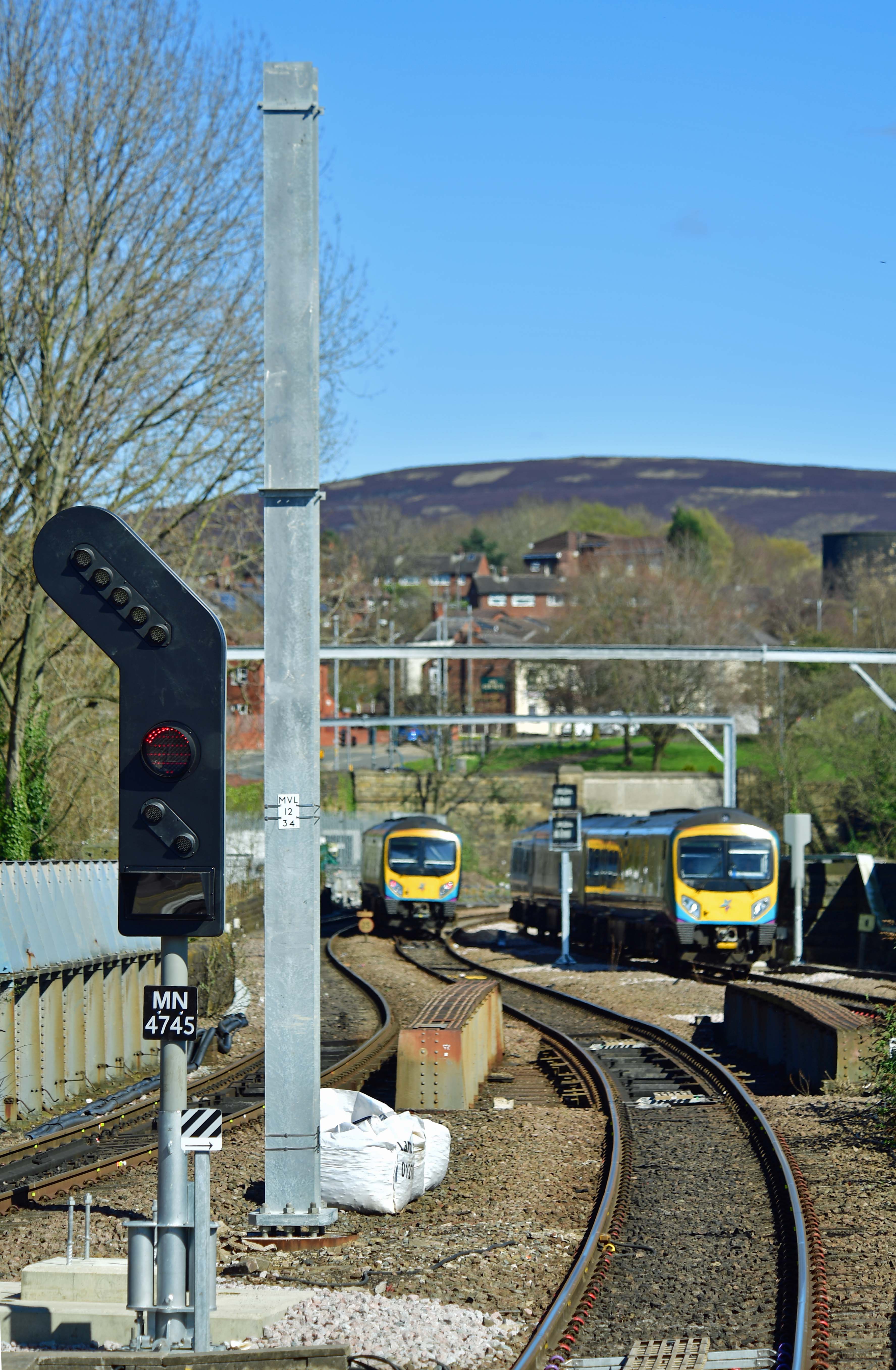

New signalling and OLE masts that have been installed at the East end of the station between platforms 3 and 4.

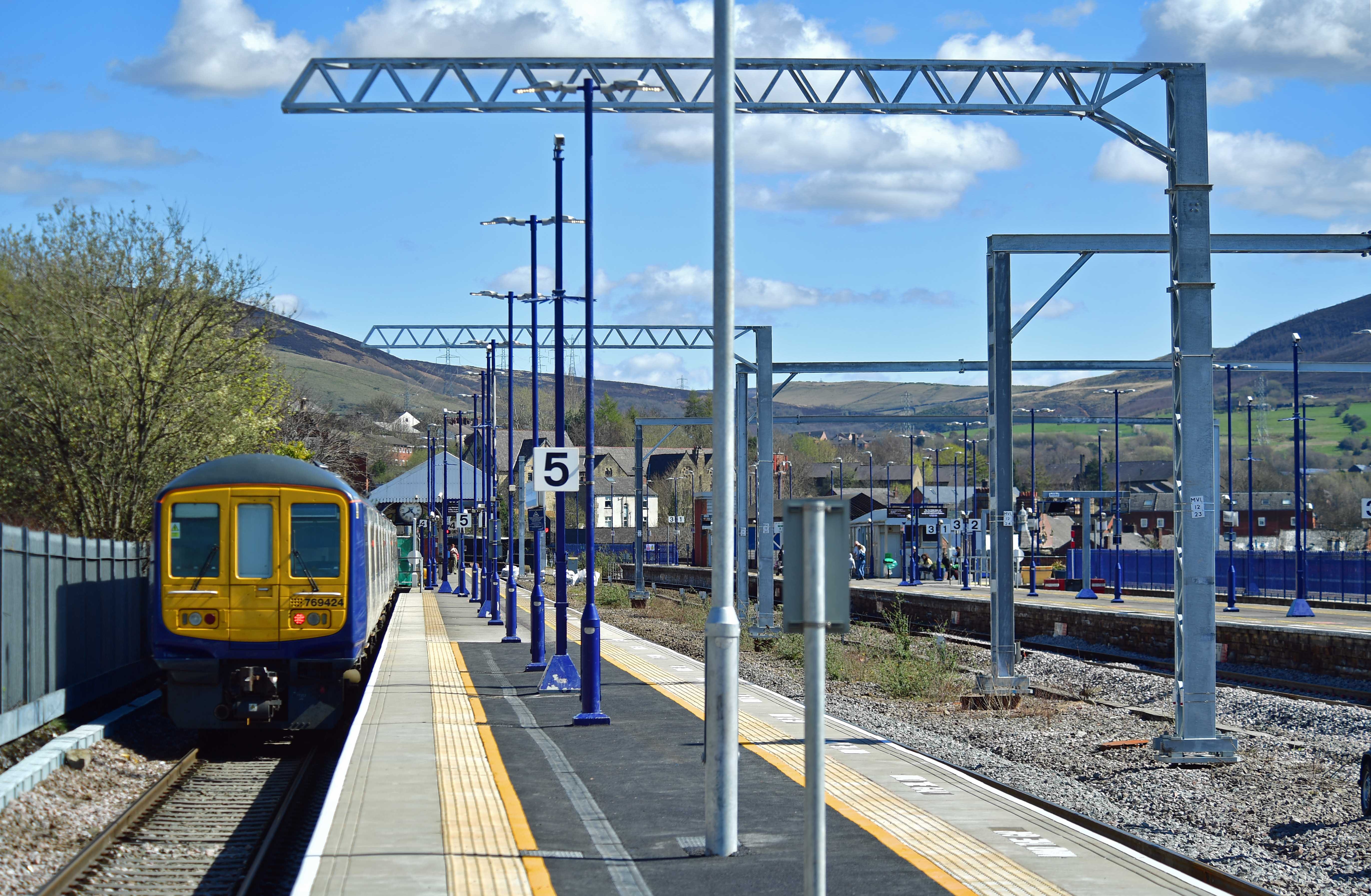

Looking East along platforms 5 and 4 with new masts and portals in place where the former through tracks were situated.

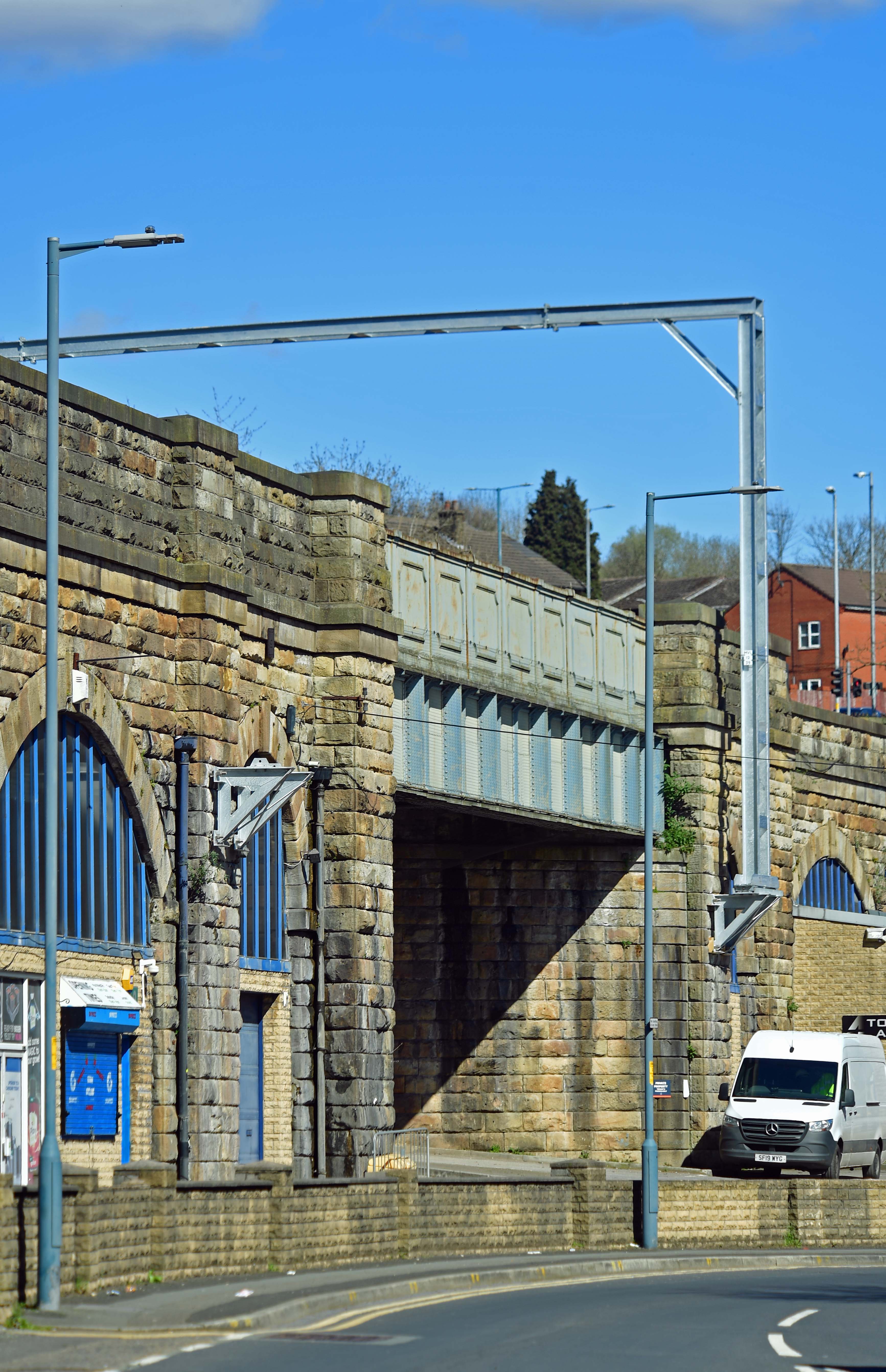

Looking along the railway viaducts by Waterloo Road. The bracket where the 2012 signal gantry was fixed to the side of the piers remains.

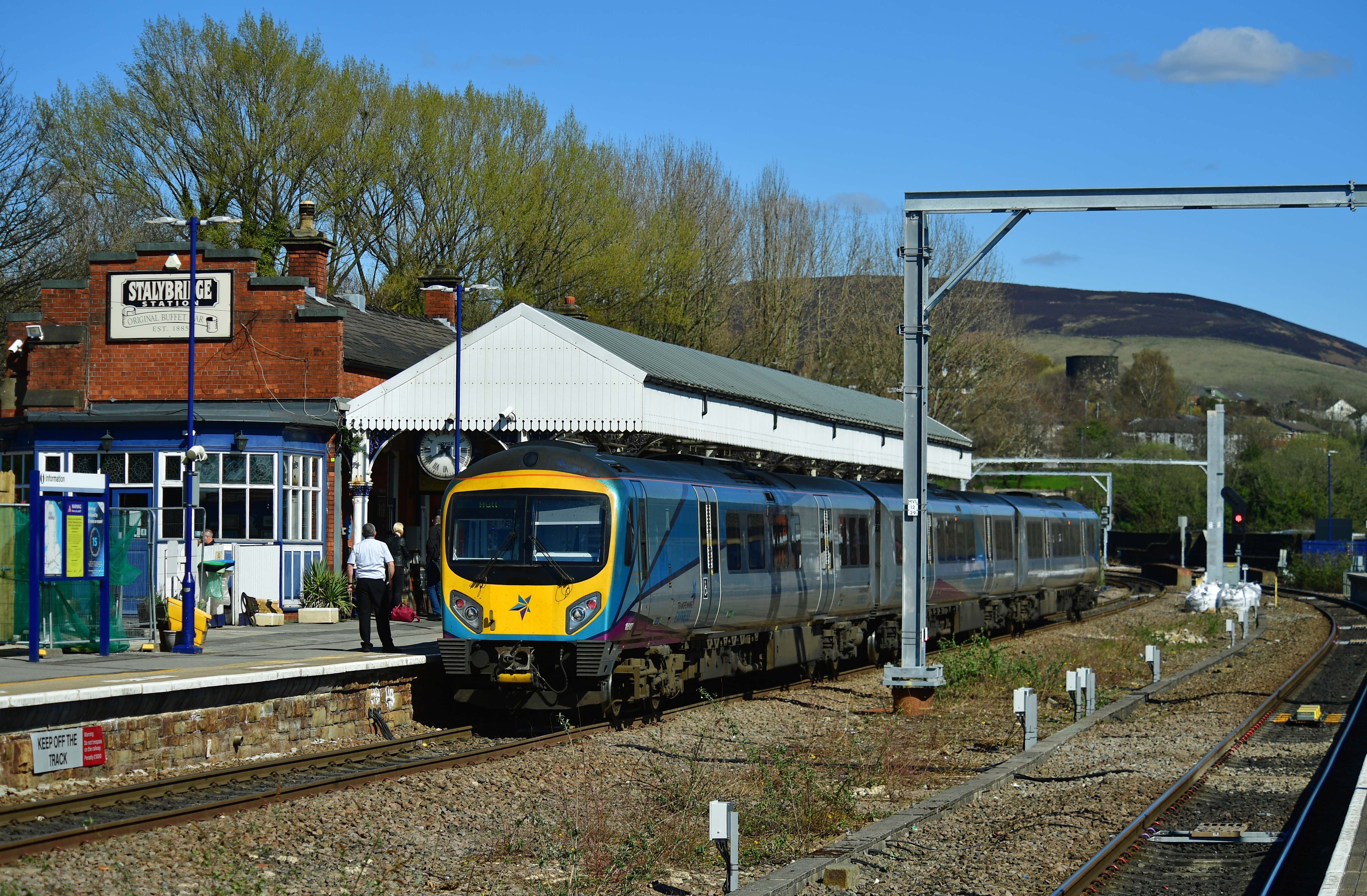

185107 calls at platform 4 outside the famous buffet bar whilst working 1K23, the 1354 Liverpool Lime Street to Hull.
